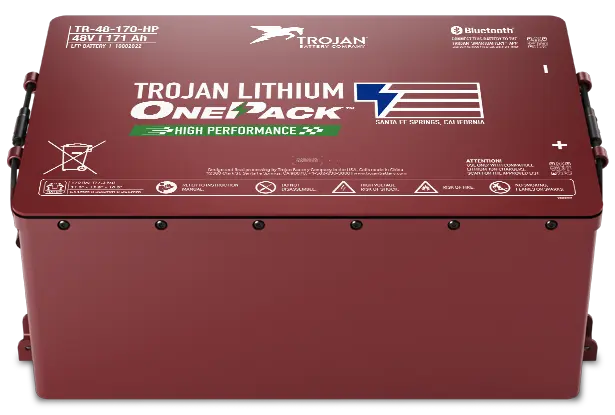

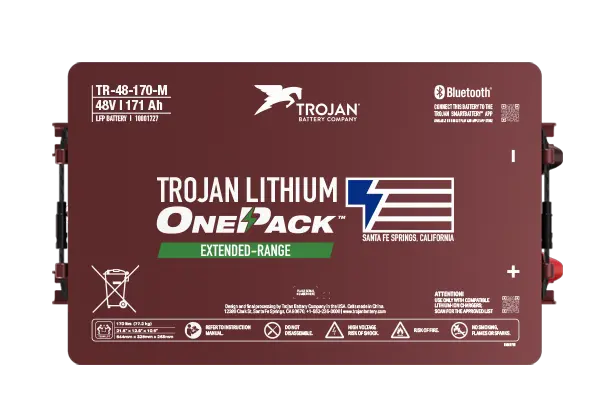

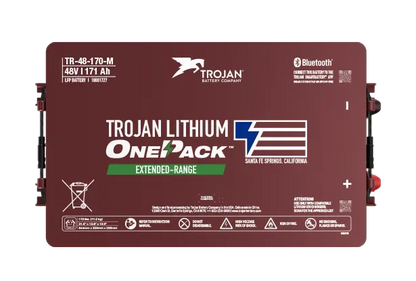

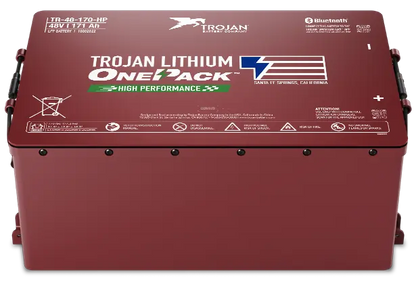

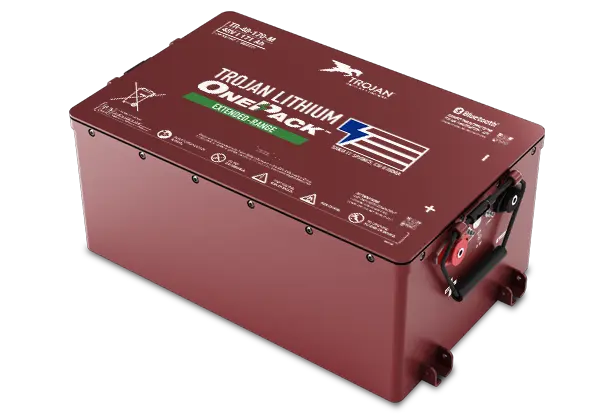

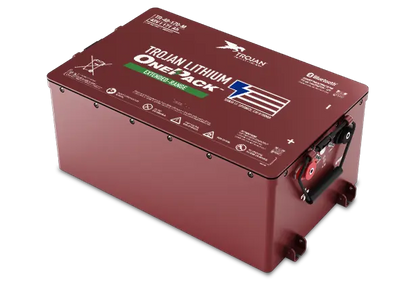

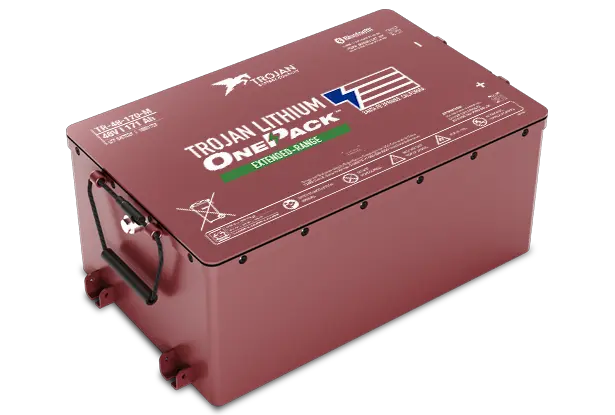

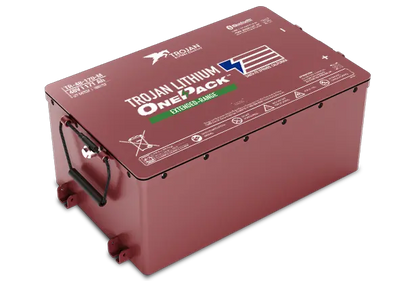

Trojan Battery Company 51.2v - 170ah HIGH CAPACITY Lithium Battery & Installation Kit

Upgrade your golf cart with the Trojan Battery Company 51.2v - 170ah HIGH CAPACITY Lithium Battery & Installation Kit, a premium lithium battery installation kit designed for dependable range, smoother power delivery, and simplified maintenance. This 51.2v lithium battery solution is built for owners who want a cleaner install, smart battery monitoring, and long-term value from a respected name in energy storage.

Overview of the Trojan 51.2V Golf Cart Package

Instead of piecing together separate parts, this Trojan battery kit gives you a coordinated system that helps reduce guesswork during installation. The result is a high capacity battery package that supports strong torque, stable output, and consistent everyday driving.

• Made for convenience: Includes the core components needed for a streamlined upgrade.
• Built for performance: Delivers steady power for hills, longer drives, and daily use.
• Lower upkeep: No watering, no acid, and no lead-acid maintenance routine.
• Modern controls: Smart monitoring tools help simplify charging and ownership.

Trojan Battery Company at a Glance

Trojan has a long-standing reputation in the battery industry, and that history matters when you are investing in a premium lithium battery installation kit. The brand’s experience, support resources, and product engineering make this package a strong fit for golf cart owners who value reliability.

• Name: Trojan Battery Company
• Founded: 1925
• Owner: KPS Capital Partners / C&D Technologies
• Address: 12380 Clark Street, Santa Fe Springs, CA 90670
• Phone: (562) 236-3000
• Website: https://www.trojanbattery.com

Smart Monitoring and Battery Management

This 51.2v lithium battery includes connected features that make daily use easier to monitor and manage. Whether you are tracking state of charge or reviewing battery status, the integrated tools help deliver a more confident ownership experience.

• Bluetooth: Yes
• Mobile application: Yes
• CAN communication: Yes
• Owner's manual: Yes
• Self heating: No
• Integration with OEM display clusters: No
• Requires upgraded drive system: No

Electrical and Physical Specifications

Use the details below to confirm fitment and compare this 170ah battery against other options before you place your order.

Electrical Performance

• Voltage: 51.2v
• Working voltage range: 48v-57v
• Amp hour rating: 170ah
• Energy: 8,775 Wh
• Cell type: LiFePO4
• Cell configuration: 1p - 16s
• Peak discharge current: 525a (2s) - 300a (10s)
• Continuous discharge current: 200a
• BMS low voltage cut-off: 43.2v
• Recommended discharge temperature range: -40 to 140F
• Charging temperature range: 32F - 131F

Dimensions and Construction

• Dimensions: 21.5" x 12.8" x 10.5"
• Weight: 170 lbs
• Case type: Powder coated steel
• Enclosure rating: IP65

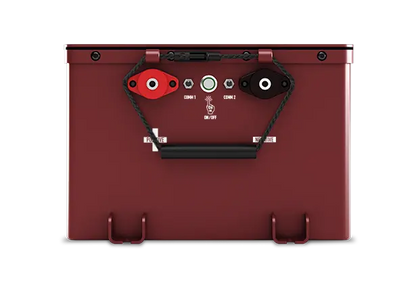

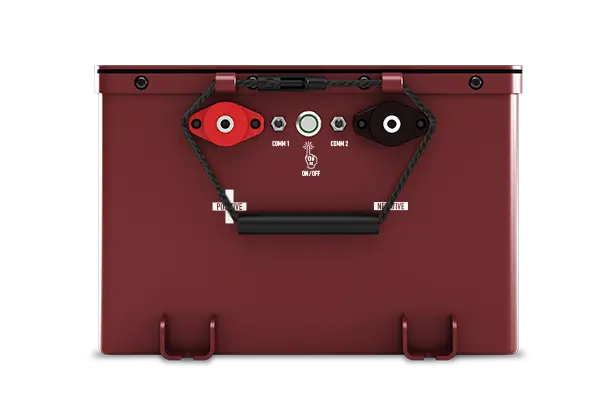

• Terminal type: M8
• Self discharge: 1-3% / month
• Data sheet: https://assets.ctfassets.net/nh2mdhlonj7m/X1vG1fgNYKHOnw4RUNYFw/c7b1319ad45e58622c3f9b9dd39cd6b1/20260309-OnePack-XR-Datasheet.pdf

What Comes in the Box

This lithium battery installation kit includes the essentials needed for a cleaner swap and a more polished finished setup.

• Battery
• Onboard charger
• Dash mounted battery gauge
• Mounting brackets and hardware
• Charge indicator
• Remote on/off button
• AC port and cover plate
• Owner's manual

Range, Torque, and Efficiency in Daily Use

For many owners, the biggest advantage of a Trojan battery kit is the way it changes the feel of the cart. Less weight can improve responsiveness, while lithium chemistry helps deliver usable capacity more efficiently than older battery types.

• Estimated range: 2/4 seater = 70+ miles | 6 seater = 45+ miles
• Weight savings: 230 lbs
• Speed increase: 1-2 MPH from reduced weight
• Torque increase: Noticeable improvement
• Service life: 4,000+ cycles

This high capacity battery setup is especially appealing for golfers, neighborhood cruisers, and fleet operators who want fewer charging headaches and better long-term value.

Lithium vs. Lead-Acid: What Changes After the Upgrade

If you are moving from traditional batteries, the difference is easy to notice. A modern 51.2v lithium battery generally offers a cleaner ownership experience and a lighter, more efficient system.

• Less maintenance: No watering or acid checks are required.
• More usable power: Lithium delivers consistent output throughout the charge.
• Faster charging: Recharge times are typically more convenient for daily use.
• Better weight balance: Reduced mass can help improve handling and acceleration.

Fitment and Installation Checklist

Before installing your lithium battery installation kit, take a few minutes to verify the cart’s battery bay and charging environment. A little preparation helps ensure a smoother setup and better day-to-day performance.

• Verify battery bay dimensions before ordering.
• Inspect terminals and connections for proper fit.
• Use the included gauge to monitor charge status.
• Follow the recommended charging temperature range for best results.
• Review the owner’s manual before first use.

Warranty, Support, and Documentation

Trojan backs this Trojan battery kit with strong documentation and technical resources so you can get help when you need it.

Technical support: https://www.trojanbattery.com/resources/technical-support

Warranty: 10 Year Warranty (5 years at 100% - 5 years prorated)

Warranty document: https://assets.ctfassets.net/nh2mdhlonj7m/TLKVDUGjSh1VbRIQc6ilo/0c2e80ea94b97c449a4c623cf72e16a7/20250808-WTY-0018-OnePack-48V-Warranty-WEB.pdf

Common Questions About the 170Ah Battery

Installation Resources

• Video tutorials: Coming soon

Ready to upgrade? Choose this 51.2v lithium battery package for premium power, smart features, and long-term confidence. Order now from AwesomeBatteries.com to get free shipping, US-based technical support, and a dependable high capacity battery solution for your golf cart.
