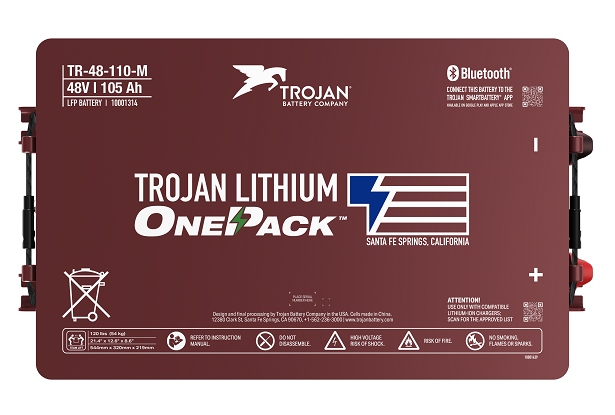

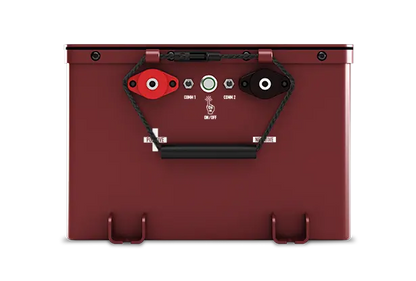

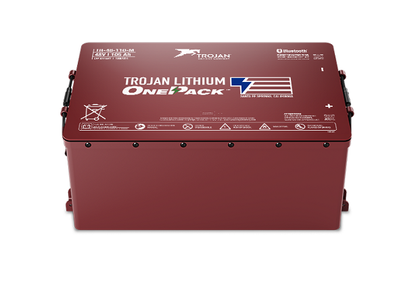

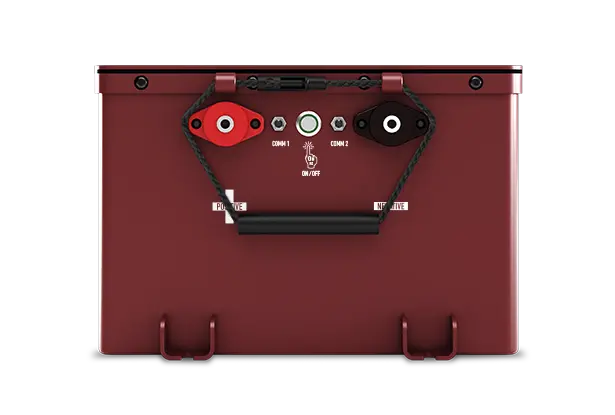

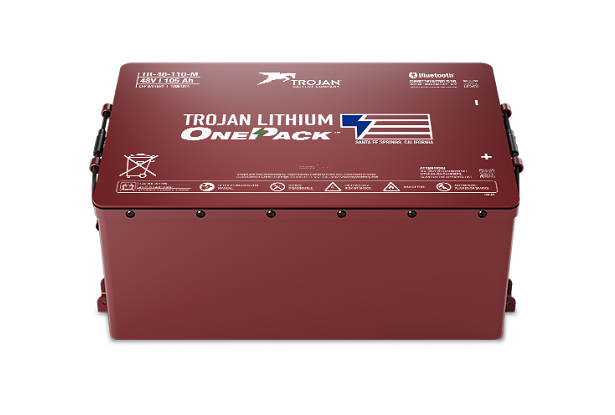

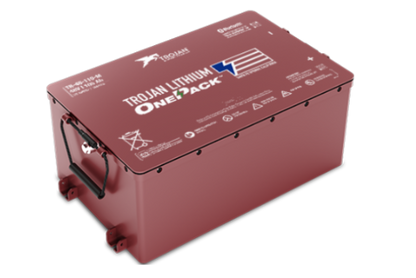

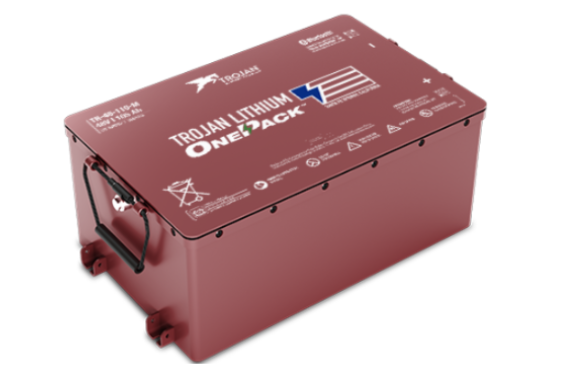

Trojan Battery Co. 51.2v - 105ah Lithium Golf Cart Battery & Installation Kit

Trojan Battery Co. 51.2v 105Ah lithium golf cart battery kit is a premium upgrade for owners who want stronger efficiency, dependable range, and a complete battery installation kit in one package. Designed by the Trojan Battery Company, this lithium battery kit combines modern monitoring tools, durable construction, and a cleaner power profile for everyday cart use.

Why a 51.2v battery is a practical upgrade for golf carts

Swapping a heavy lead-acid setup for a 51.2v battery can change how your cart accelerates, climbs, and handles. The lighter design helps reduce strain on the vehicle while supporting steadier output, quicker response, and easier ownership. For drivers who want better performance with less upkeep, lithium is a clear step forward.

AwesomeBatteries.com includes free shipping and US-based technical support to make the upgrade process simpler from start to finish.

About Trojan Battery Company

Founded in 1925, Trojan Battery Company has built a long-standing reputation for reliable energy storage solutions. The brand is known for practical engineering, strong support resources, and products that fit a wide range of golf cart battery applications.

• Name: Trojan Battery Company
• Founded: 1925
• Owner: KPS Capital Partners / C&D Technologies
• Location: 12380 Clark Street, Santa Fe Springs, CA 90670
• Phone: (562) 236-3000
• Website: trojanbattery.com

Connected monitoring and battery management features

This battery installation kit is built to support easier oversight and more convenient operation. Bluetooth connectivity and mobile app access let you review battery status, while CAN communication helps improve system visibility and diagnostics.

• Bluetooth: Yes
• Mobile app: Yes
• CAN communication: Yes
• Owner’s manual: Included
• Self-heating: No
• OEM display cluster integration: No
• Upgraded drive system required: No

51.2v battery specifications and capacity options

105Ah configuration

• Voltage: 51.2v
• Working voltage range: 48v-57v
• Amp hour rating: 105ah
• Energy: 5.376 kWh
• Cell type: LiFePO4
• Cell configuration: 1p - 16s
• Peak discharge current: 525a (2s) / 300a (10s)
• Continuous discharge current: 200a
• BMS low voltage cut-off: 43.2v
• Recommended discharge temperature range: -40 to 140F
• Charging temperature range: 34F - 140F
• Dimensions: 21.4" x 12.6" x 8.6"
• Weight: 120 lbs
• Case type: Powder coated steel
• Enclosure rating: IP65
• Terminal type: M8
• Self discharge: 1-3% / month

Data sheet: View the 105Ah specification sheet

170Ah configuration

• Voltage: 51.2v
• Working voltage range: 48v-57v
• Amp hour rating: 170ah
• Energy: 8,775 Wh
• Cell type: LiFePO4
• Cell configuration: 1p - 16s
• Peak discharge current: 525a (2s) / 300a (10s)
• Continuous discharge current: 200a
• BMS low voltage cut-off: 43.2v
• Recommended discharge temperature range: -40 to 140F
• Charging temperature range: 32F - 131F
• Dimensions: 21.5" x 12.8" x 10.5"
• Weight: 170 lbs
• Case type: Powder coated steel
• Enclosure rating: IP65
• Terminal type: M8
• Self discharge: 1-3% / month

Data sheet: View the 170Ah specification sheet

What is included in the battery installation kit

This package is designed to simplify the replacement process with the parts needed for a cleaner installation and a better user experience.

• Battery
• Onboard charger
• Dash-mounted battery gauge
• Mounting brackets and hardware
• Charge indicator
• Remote on/off button
• AC port and cover plate
• Owner’s manual

Performance advantages of this lithium battery kit

Compared with older lead-acid systems, this lithium battery kit can deliver a more responsive driving feel and a more efficient power supply. Lower battery weight helps the cart move with less effort, which can improve acceleration, climbing ability, and steering feel.

• Range: 105Ah setup delivers about 40-45 miles for a 2/4-seater and 25-30 miles for a 6-seater under average conditions
• Range: 170Ah setup delivers 70+ miles for a 2/4-seater and 45+ miles for a 6-seater under average conditions
• Weight savings: Up to 270 lbs on the 105Ah configuration
• Weight savings: Up to 230 lbs on the 170Ah configuration
• Speed gain: About 1-2 MPH from reduced weight
• Torque: Improved low-end pull for hills and starts
• Service life: 4,000+ cycles

How to choose between the 105ah battery and 170ah battery

If you want a compact 105ah battery for regular recreational use, the standard configuration is a strong fit. If you prefer extended runtime for longer rides, heavier loads, or less frequent charging, the higher-capacity option is the better match. Both versions use LiFePO4 chemistry and are built for dependable everyday operation.

As a general rule, the 105Ah option suits shorter routes and lighter carts, while the 170Ah version is ideal for users who want maximum range from a golf cart battery system.

Installation and compatibility tips

Before placing your order, confirm that your cart supports a 48v-class layout and that the battery compartment has enough room for the selected dimensions. It is also smart to review terminal placement, charger setup, and wiring access so the installation goes smoothly.

• Measure the battery bay before purchase
• Check charger compatibility with lithium charging requirements
• Review terminal orientation and cable length
• Keep the owner’s manual handy during setup
• Verify that the cart is intended for a 51.2v battery configuration

Warranty coverage and support resources

Your purchase includes a 10-year warranty with five years at 100% coverage and five years prorated. Trojan also provides technical resources for product questions, setup guidance, and troubleshooting support.

• Warranty information: View warranty details
• Technical support: Access technical support

Installation videos:

https://youtu.be/UPsSw21K2NY - Club Car Precedent, Onward, & Tempo Installation Video

Frequently asked questions about this golf cart battery

Order your Trojan lithium battery kit with confidence

If you are ready to replace an aging golf cart battery with a dependable Trojan solution, this package offers a strong balance of range, durability, and convenience. Choose the capacity that fits your needs, then shop with AwesomeBatteries.com for expert help, free shipping, and a smoother upgrade experience.
