Summit Battery Group - 60v - 160ah Lithium Battery & Installation Kit

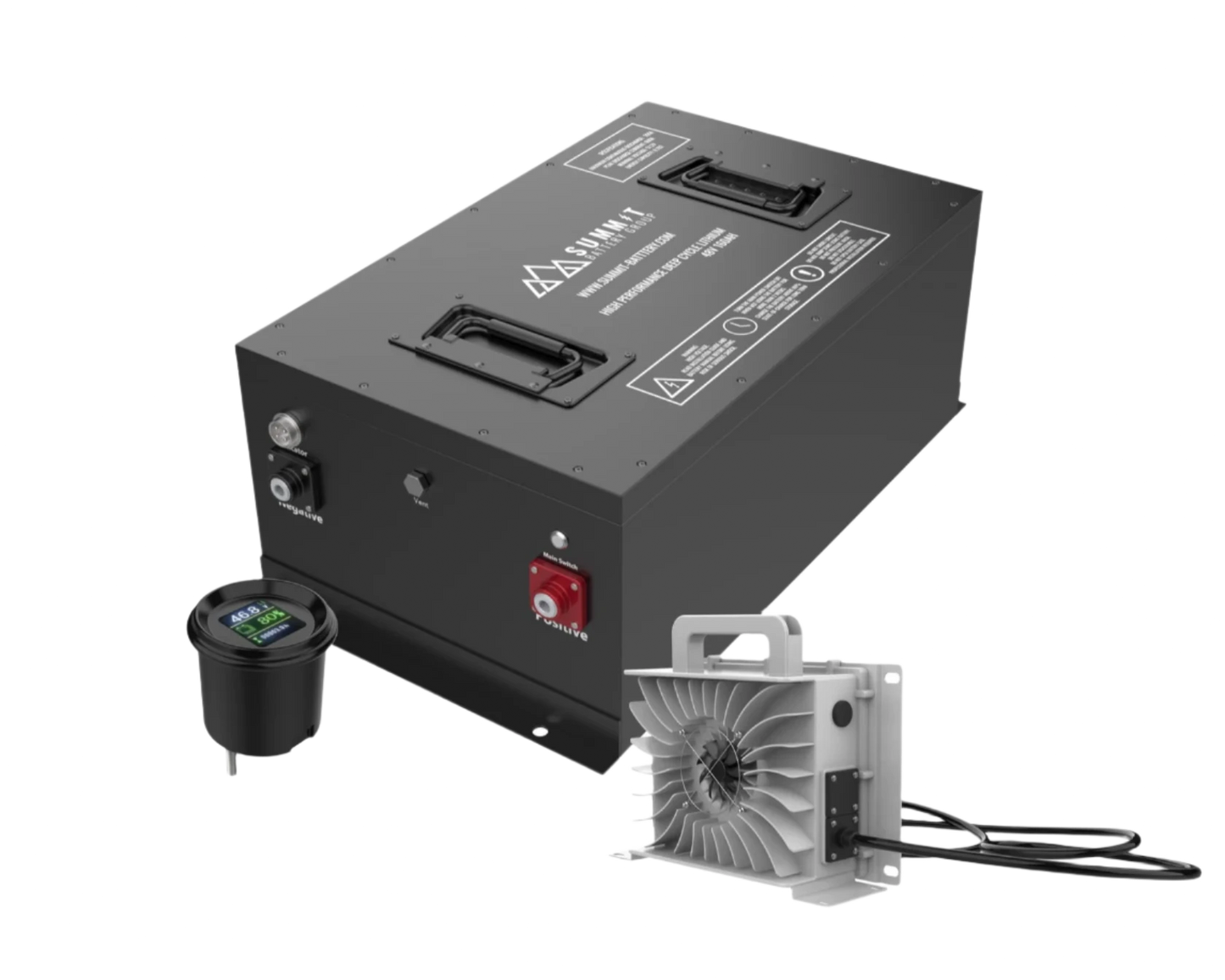

This is the 60v - 160ah (extended range) lithium golf cart battery and installation kit by the SUMMIT BATTERY GROUP.

COMPANY PROFILE

NAME: Summit Battery Group

DOING BUSINESS SINCE: 2023

OWNER: Andrew Granite

ADDRESS: NA

Phone Number: (813) 252-0940

Website: www.summit-battery.com

BATTERY FEATURES

BLUETOOTH: Yes

MOBILE APPLICATION: Yes

REMOTE DIAGNOSTICS: Yes

CAN COMMUNICATION: Yes

OWNER'S MANUAL: Yes

SELF HEATING: No

INTEGRATION WITH OEM DISPLAY CLUSTERS: No

REQUIRES UPGRADED DRIVE SYSTEM: No

BATTERY SPECIFICATIONS



VOLTAGE: 60v

WORKING VOLTAGE RANGE: 50-68v

AMP HOUR RATING: 160ah

ENERGY:  Wh

CELL TYPE: LiFeP04

CELL CONFIGURATION:

PEAK DISCHARGE CURRENT: 600a

CONTINUOUS DISCHARGE CURRENT: 200a

BMS LOW VOLTAGE CUT-OFF: 50v

RECOMMENDED DISCHARGE TEMPERATURE RANGE: -4 to 149F

CHARGING TEMPERATURE RANGE: 32F - 113F

DIMENSIONS:

WEIGHT:

CASE TYPE: Gun metal powder coated steel shell

ENCLOSURE RATING: IP67

TERMINAL TYPE: M8

SELF DISCHARGE: 2% / Mo.

INCLUDED COMPONENTS

Battery

Onboard Charger

Battery Meter / Wiring Harness (dash mounted on/off button optional)

12v Voltage Reducer / Wiring Harness (optional add on item)

Mounting Hardware

Main Battery Replacement Cables (2 gauge)

AC Port Replacement / AC Port Cover Plate

Owner's Manual, Warranty & Component Information

PERFORMANCE EXPECTATIONS

RANGE: (under average load) 2/4 seater = 50+

WEIGHT SAVINGS: 200 lbs

SPEED INCREASE: 1-2 MPH due to weight loss

TORQUE INCREASE: Noticeable torque increase

SERVICE LIFE: 3500+ life cycles

TECHNICAL SUPPORT

By phone Mon-Fri - 9am-5pm EST. @ (813)252-0940

By email - info@summit-battery.com

WARRANTY

- 8 YEAR WARRANTY (5 years at 100% & 3 years prorated)

- LINK: https://www.summit-battery.com/pages/warranty-information

INSTALLATION VIDEOS

- Club Car Precedent - 51.2v-160ah Summit Battery Group
