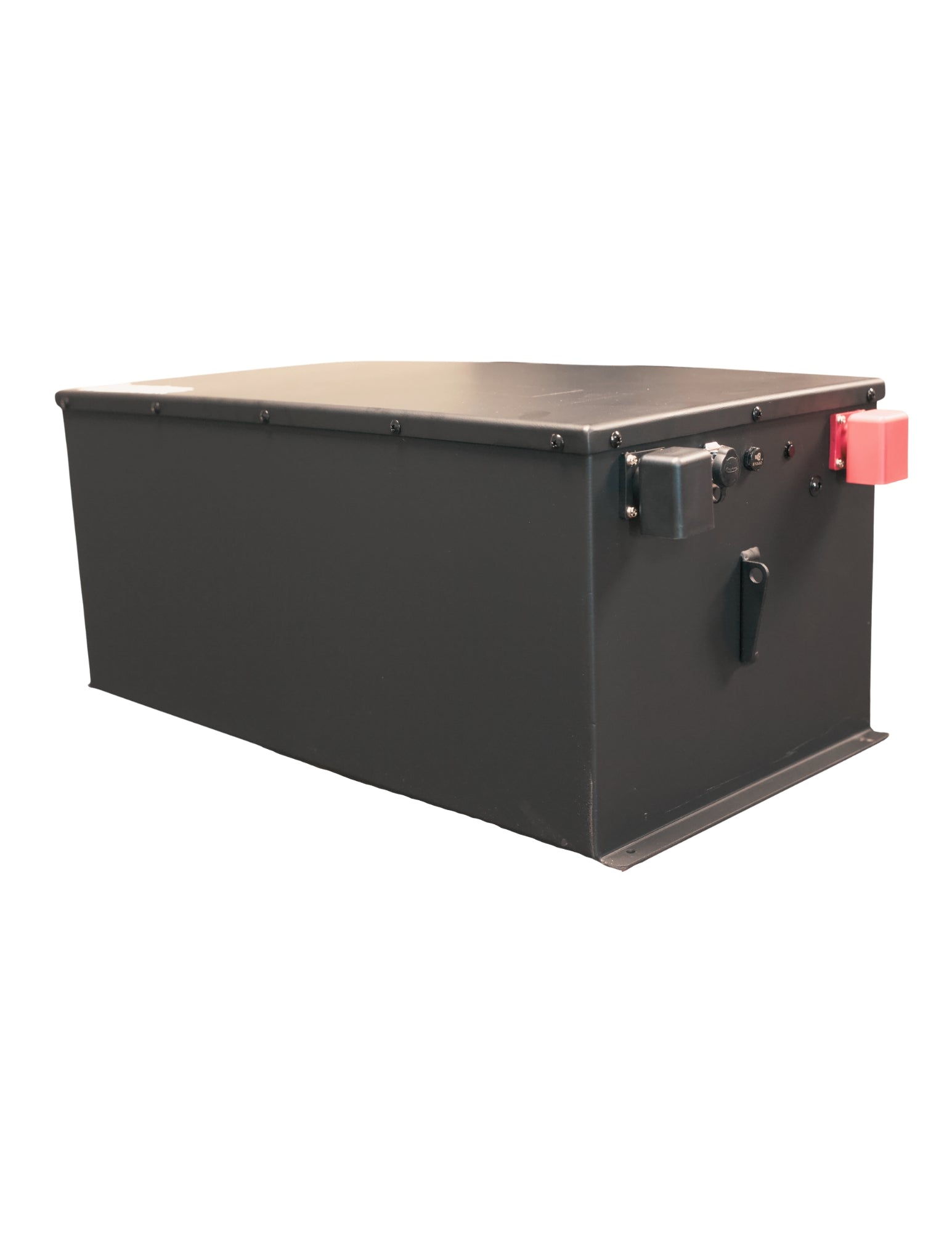

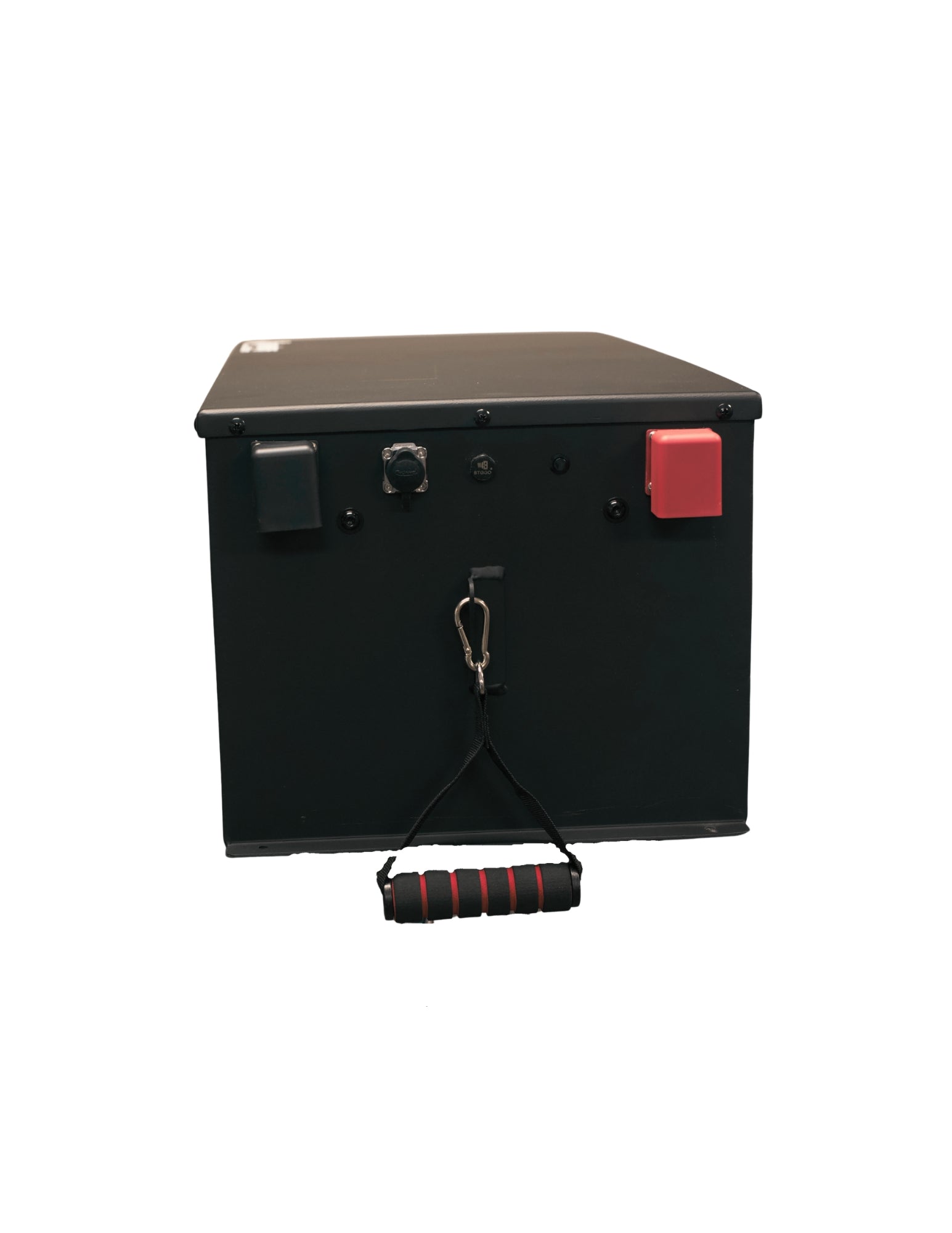

Skunkworks Lithium 76.8V 250Ah Golf Cart Battery & Installation Kit

Give your cart a serious power upgrade with the 76.8V 250Ah lithium golf cart battery kit from SKUNKWORKS LITHIUM. Built for dependable output, easy monitoring, and smooth performance, this golf cart battery kit is designed for 72V-compatible carts that need more range, less weight, and modern lithium efficiency.

High-Output 76.8V Battery Upgrade for 72V-Compatible Carts

If you are replacing a heavy lead-acid setup, this 76.8V battery offers a cleaner, lighter alternative with a strong discharge profile and a practical installation package. It is a smart choice for owners who want a lithium golf cart battery that delivers reliable acceleration, steady voltage under load, and simple day-to-day management.

• Long-distance capability: 19.2 kWh of stored energy for extended use
• Lower weight: roughly 200 lbs lighter than comparable lead-acid systems
• Easy monitoring: Bluetooth connectivity with mobile app access
• Built-in protection: BMS with CAN communication and low-voltage cutoff
• Cold-weather help: self-heating support for improved operation in cooler conditions

Why This Golf Cart Battery Kit Is Different

Unlike a basic replacement pack, this battery installation kit is designed as a complete lithium solution. That means fewer guesswork moments during setup and more confidence once the cart is on the road. For drivers who want a modern golf cart battery kit, the combination of capacity, safety features, and monitoring tools makes a noticeable difference.

Smart controls and safety features

• Bluetooth enabled: Yes
• Mobile app support: Yes
• Remote diagnostics: Available through supported tools
• CAN communication: Yes
• Self-heating: Included upgraded feature
• OEM display cluster integration: Not supported
• Drive system requirement: 72V-compatible drive systems or aftermarket AC systems that support 72V

SKUNKWORKS LITHIUM Company Information

• Name: Skunkworks Lithium
• In business since: 2023
• Owner: Justin Emm
• Location: Cookeville, TN 38506
• Phone: (931) 783-1867 (Monday through Friday, 9 AM to 5 PM)
• Website: www.skunkworkslithium.com

Technical Specifications for the 250Ah Battery

This 250Ah battery is built with LiFePO4 cell chemistry for stable performance and long service life. Below are the core specs for this 76.8V battery package.

• Voltage: 76.8V
• Operating voltage range: 60V to 87.6V
• Amp-hour rating: 250Ah
• Energy storage: 19.200 kWh
• Cell type: LiFePO4
• Cell configuration: 24S - (12x2)
• Peak discharge current: 900A for 10 seconds
• Continuous discharge current: 250A
• BMS low-voltage cutoff: 60V
• Recommended discharge temperature: -4°F to 131°F
• Charging temperature: 34°F to 140°F
• Dimensions: 27.75" x 14.25" x 11.75"
• Weight: 250 lbs
• Case type: Metal shell with iron plate baking varnish
• Enclosure rating: IP65
• Terminal type: M8
• Self-discharge rate: 3% per month

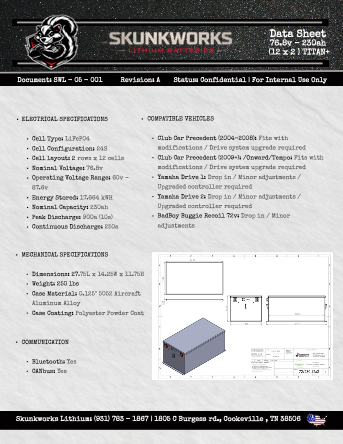

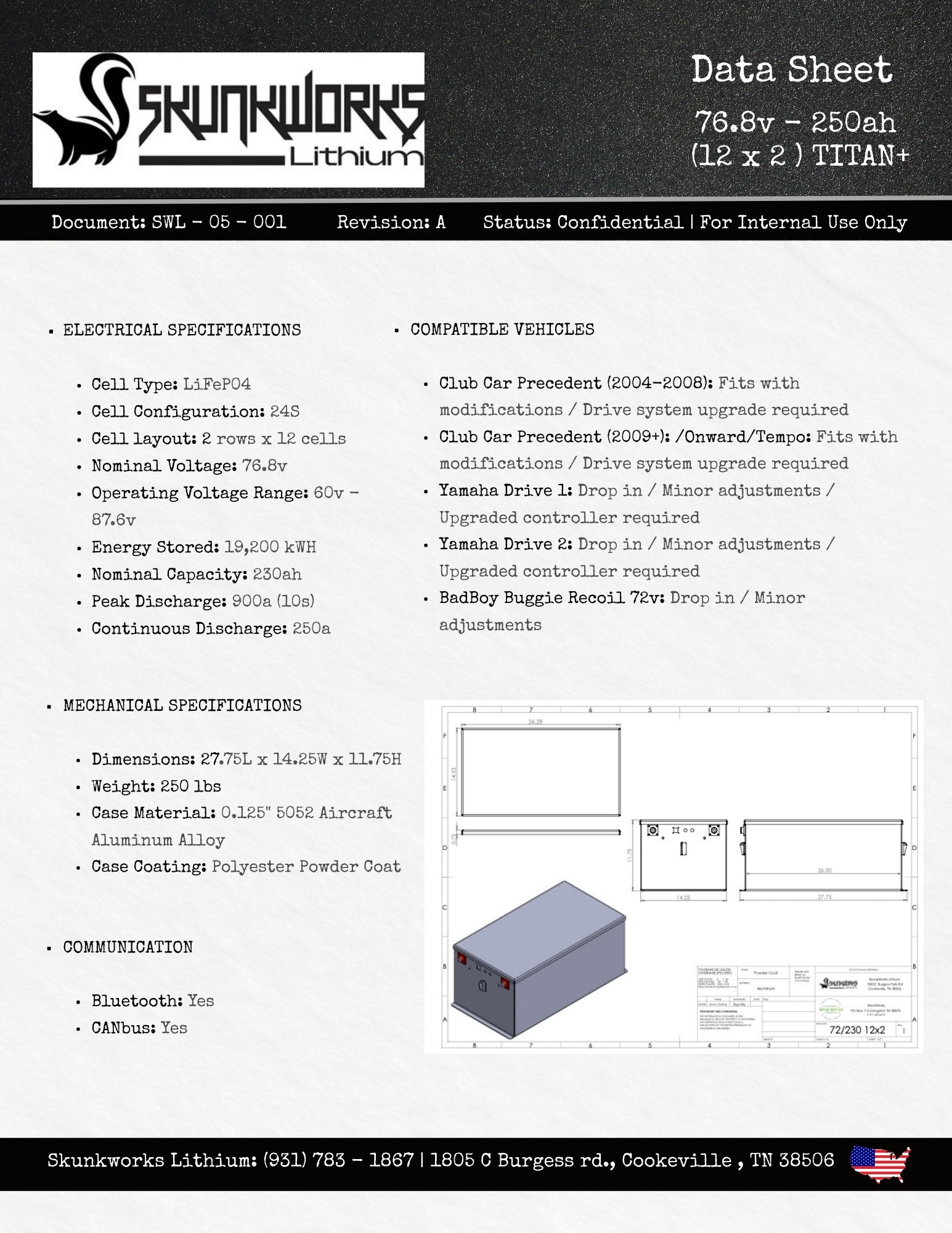

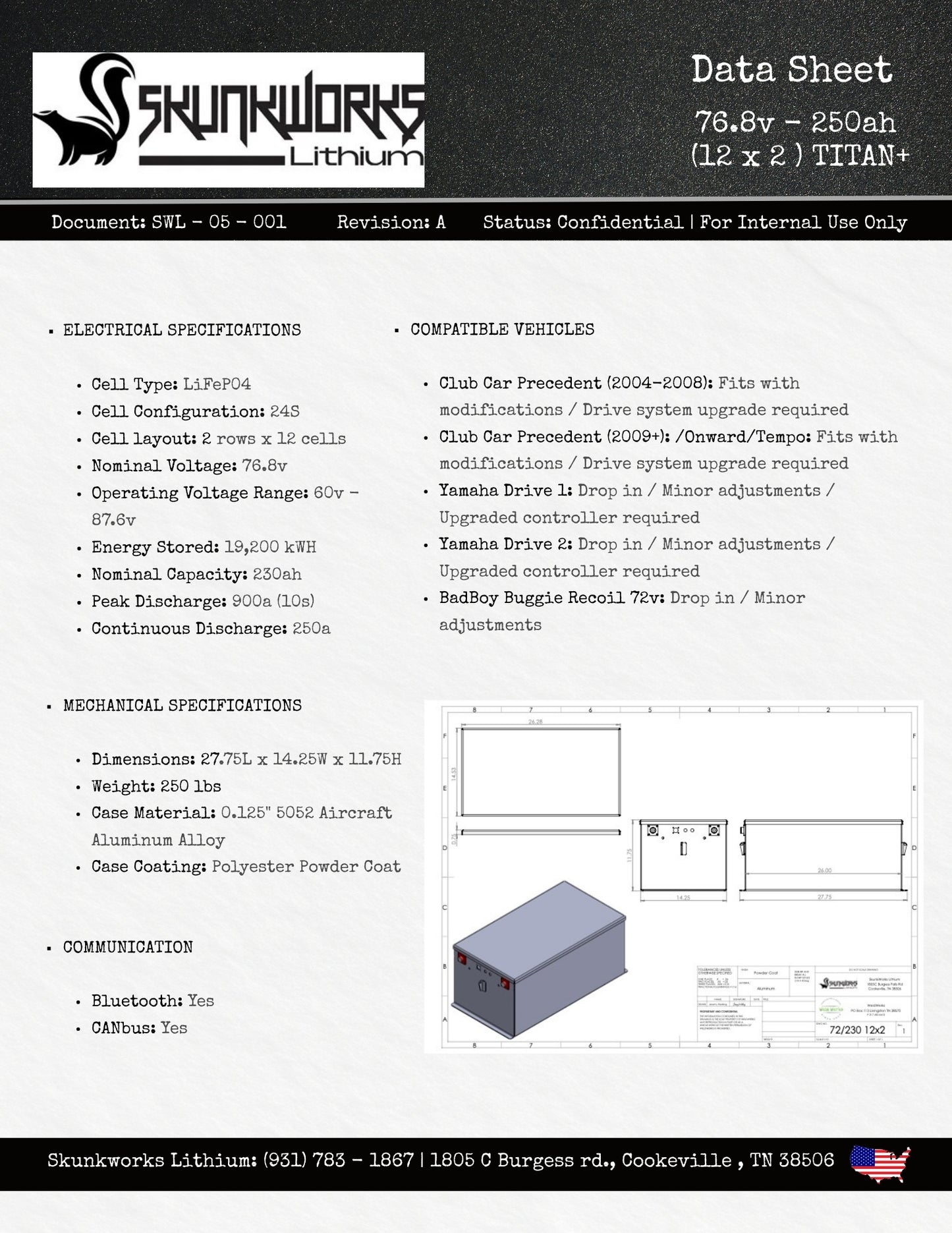

Data sheet: Full technical documentation is available in the product images.

What Comes With the Battery Installation Kit

The package includes the essentials needed for a streamlined upgrade, so you can get your lithium golf cart battery system installed with less hassle.

• Battery

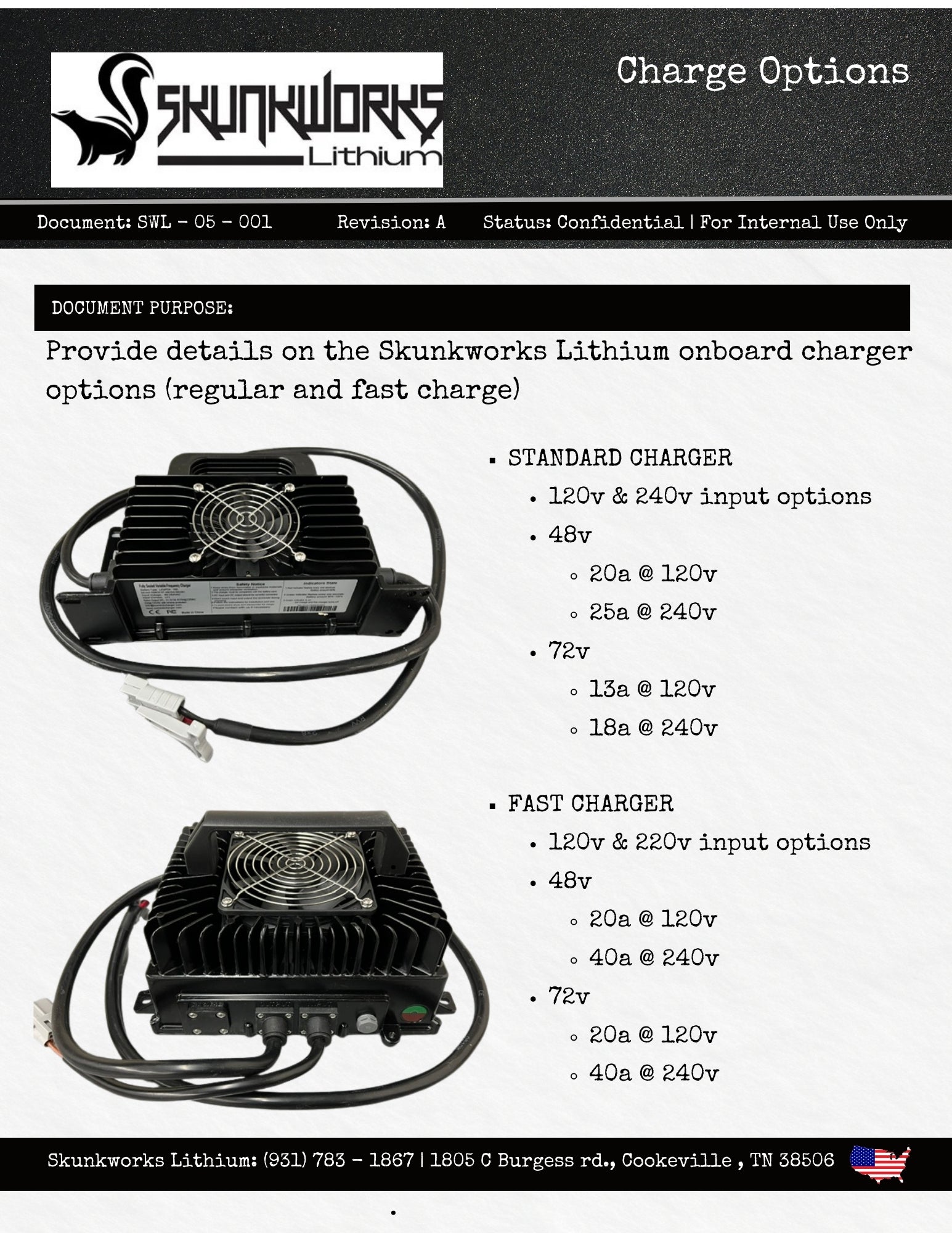

• Onboard charger

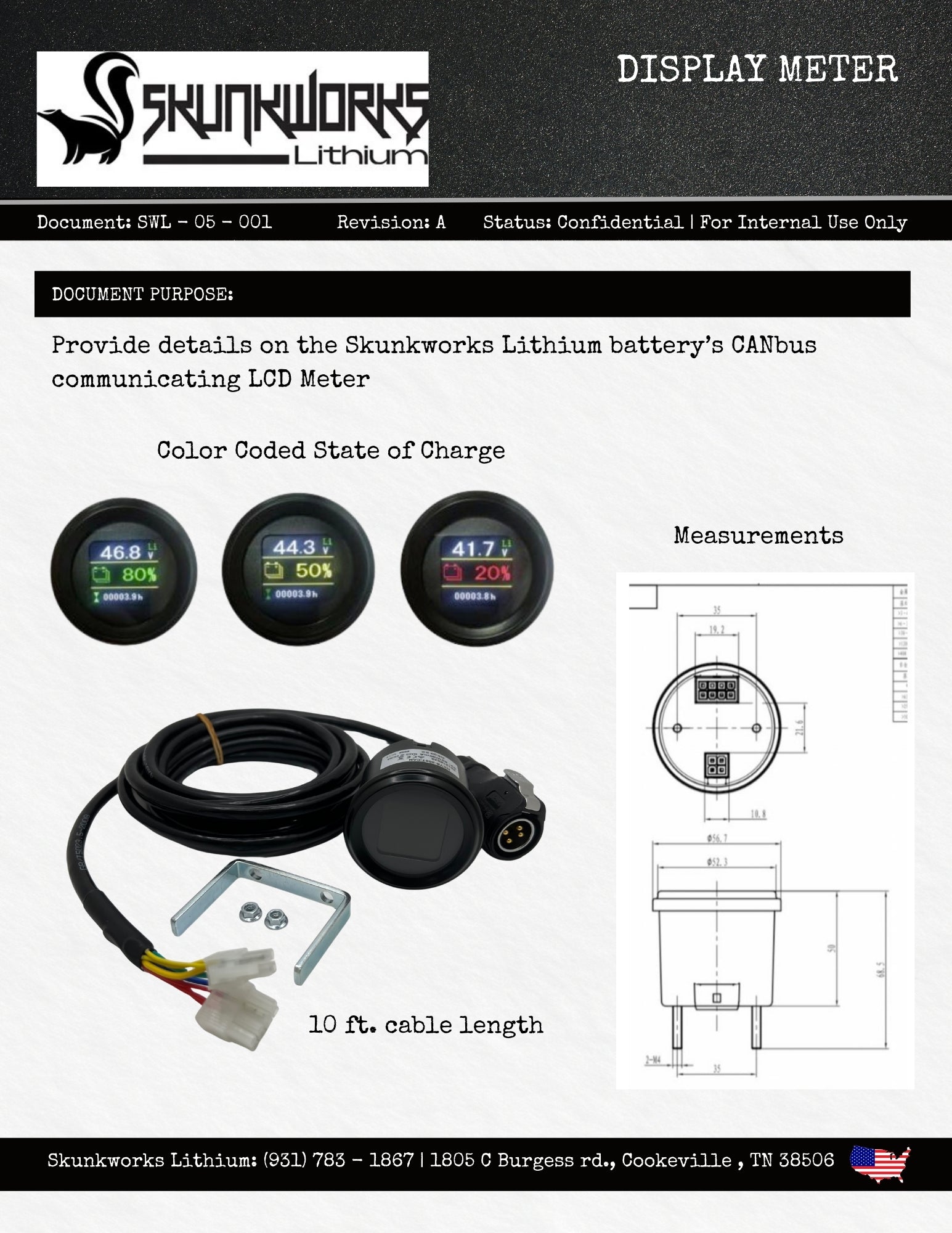

• Battery meter / wiring harness

Range, Torque, and Everyday Performance

This lithium golf cart battery is engineered to hold voltage well and deliver power smoothly when you need it most. Under average use, expected range may reach 100+ miles on a 2/4-seater or 70+ miles on a 6-seater.

• Weight savings: about 200 lbs versus traditional lead-acid batteries
• Speed improvement: typically 1-2 MPH from reduced vehicle mass
• Off-the-line response: stronger torque and smoother acceleration
• Service life: 3500+ cycles for long-term value

Fitment and Installation Guidance

This 76.8V battery is intended for carts with 72V-compatible drive systems and aftermarket AC systems rated for 72V operation. Because it does not integrate with OEM display clusters, it is best suited to owners planning a lithium conversion or a complete electrical refresh.

Installation details worth checking first

• Terminal style: M8
• Enclosure protection: IP65-rated metal shell
• Housing finish: Iron plate baking varnish construction
• System match: Confirm controller and drive compatibility before installation

Charging, Storage, and Cold-Weather Use

To get the best results from this 250Ah battery, stay within the recommended charging and discharge limits. The self-heating upgrade helps the golf cart battery kit remain more usable when temperatures drop, making it a practical option for year-round operation.

• Charging range: 34°F to 140°F
• Discharge range: -4°F to 131°F
• Monthly self-discharge: about 3%

Support, Warranty, and After-Sale Help

Have questions about setup, fitment, or product details? Technical support is available by phone at (931) 783-1867 Monday through Friday from 9 AM to 5 PM. Your purchase also includes a 5-year warranty, along with U.S.-based support from Awesome Batteries for energy storage products.

Installation Videos and Product Resources

Installation video: Coming soon. Check back for a step-by-step walkthrough once the guide is published.

Frequently Asked Questions About This Lithium Golf Cart Battery

Ready to Upgrade Your Cart?

Choose this golf cart battery kit from AwesomeBatteries.com for strong performance, free shipping, and knowledgeable U.S.-based support. If you want a dependable lithium golf cart battery solution with modern features and long-term value, this package is ready to power your next ride.
