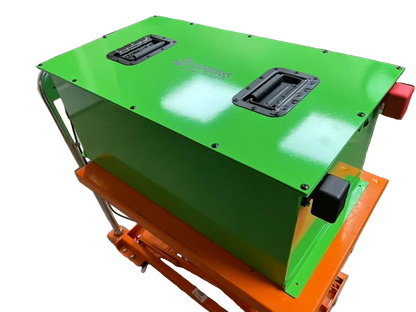

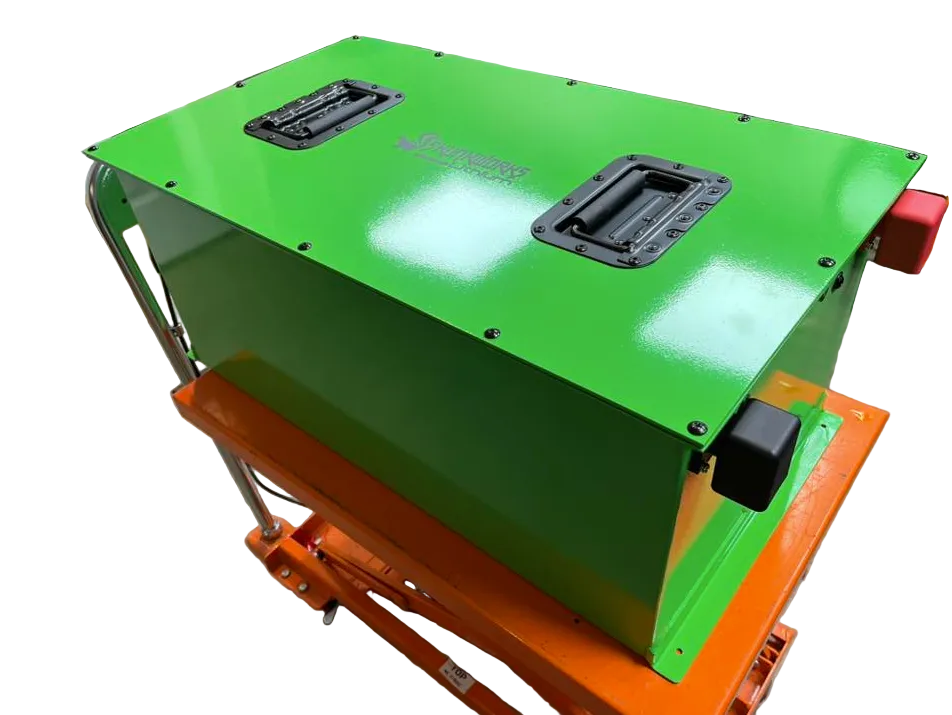

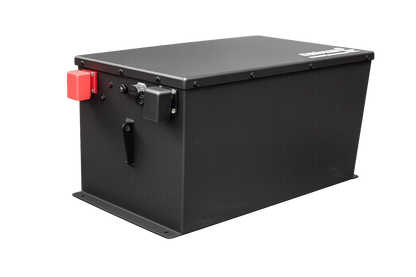

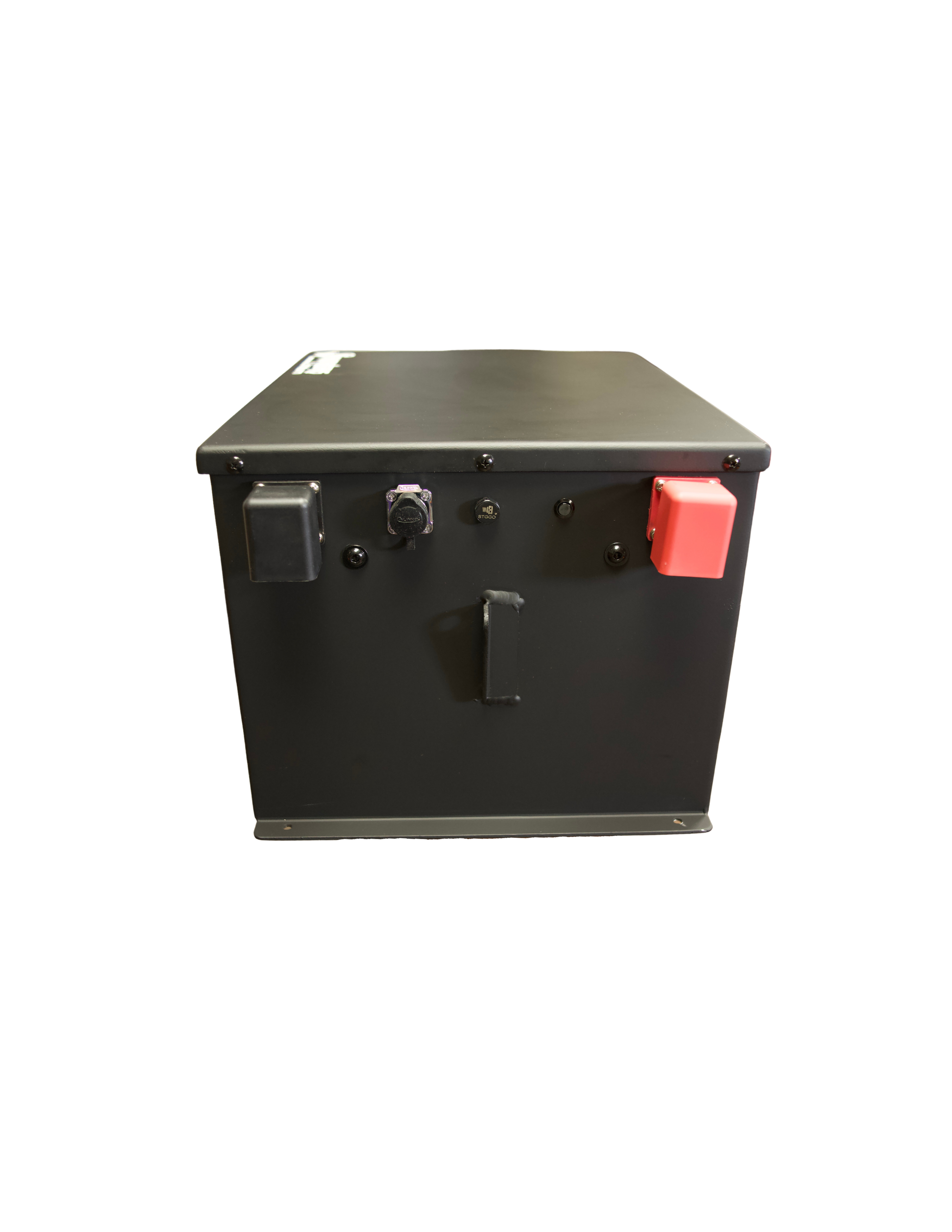

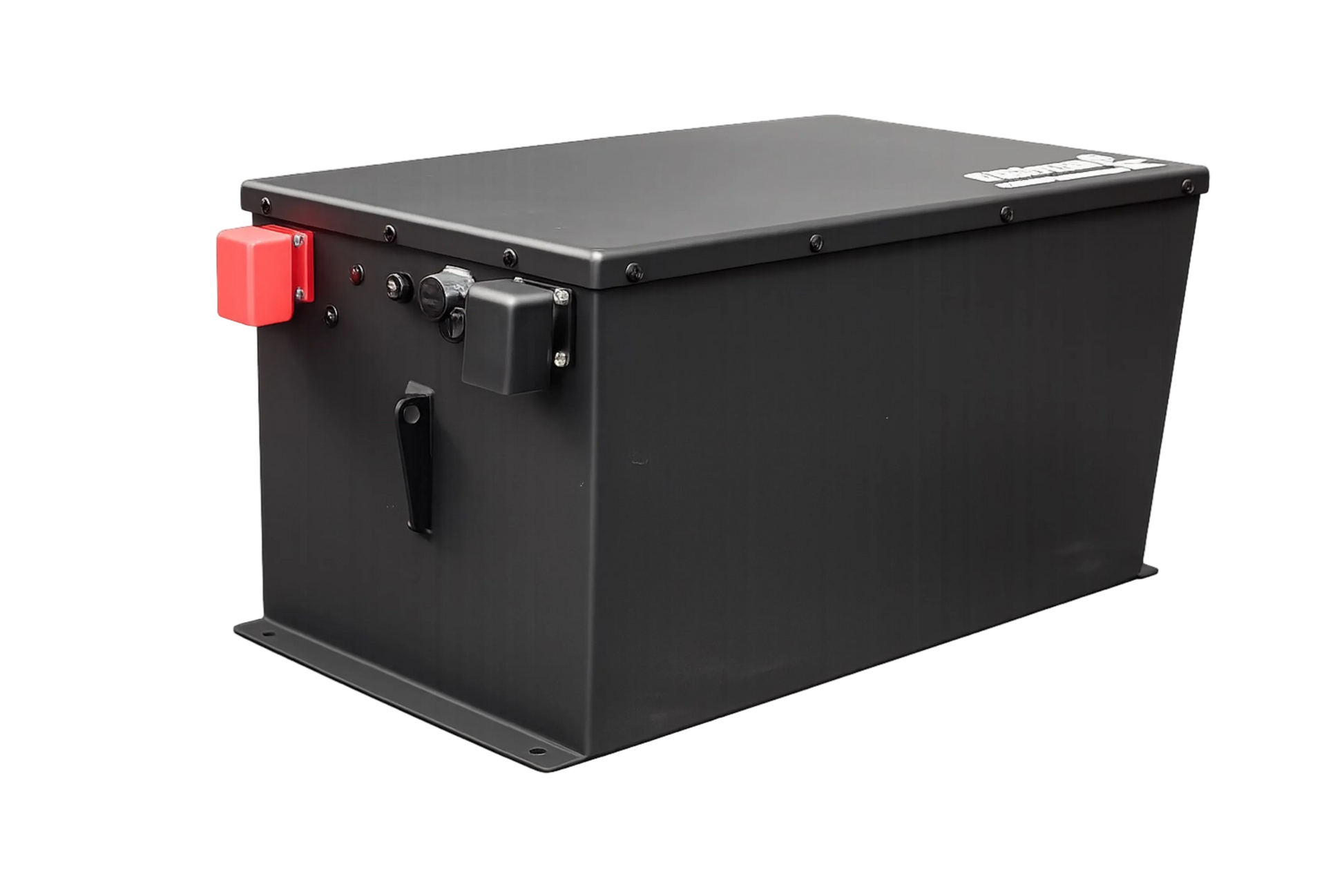

Skunkworks LIthium 76.8v - 105ah (12x2) Lithium Golf Cart Battery & Installation Kit

This is the 76.8v - 105ah (12x2) high performance lithium golf cart battery and installation kit by SKUNKWORKS LITHIUM.

COMPANY PROFILE

NAME: Skunkworks Lithium

DOING BUSINESS SINCE: 2023

OWNER: Justin Emm

ADDRESS: Cookeville, TN 38506

Phone Number: (931) 783-1867 (9-5 weekdays)

Website: www.skunkworkslithium.com

BATTERY FEATURES

BLUETOOTH: Yes

MOBILE APPLICATION: Yes

REMOTE DIAGNOSTICS:

CAN COMMUNICATION: Yes

OWNER'S MANUAL:

SELF HEATING: Yes - upgraded feature

INTEGRATION WITH OEM DISPLAY CLUSTERS: No

REQUIRES UPGRADED DRIVE SYSTEM: For 72v compatible drive systems & after-market AC drive systems that are 72v compatible

BATTERY SPECIFICATIONS

VOLTAGE: 76.8v

WORKING VOLTAGE RANGE: 60v-87.6v

AMP HOUR RATING: 105ah

ENERGY: 8.064  kWH

CELL TYPE: LiFeP04

CELL CONFIGURATION: 24S - (2x12)

PEAK DISCHARGE CURRENT: 600a (10s)

CONTINUOUS DISCHARGE CURRENT: 250a

BMS LOW VOLTAGE CUT-OFF: 60v

RECOMMENDED DISCHARGE TEMPERATURE RANGE: -4 to 131F

CHARGING TEMPERATURE RANGE: 34F - 140F

DIMENSIONS: (LxWxH) "19.39 x 10.77" x 10.75"

WEIGHT: 125 lbs

CASE TYPE: Metal Shell - Iron Plate Baking Varnish

ENCLOSURE RATING: IP65

TERMINAL TYPE: M8

SELF DISCHARGE: 3% / Mo.

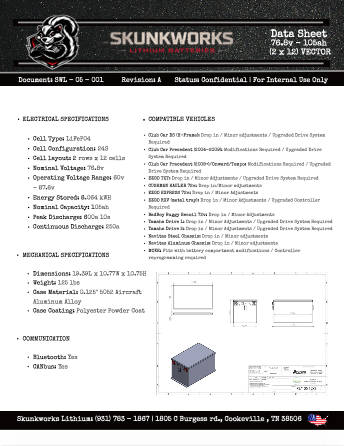

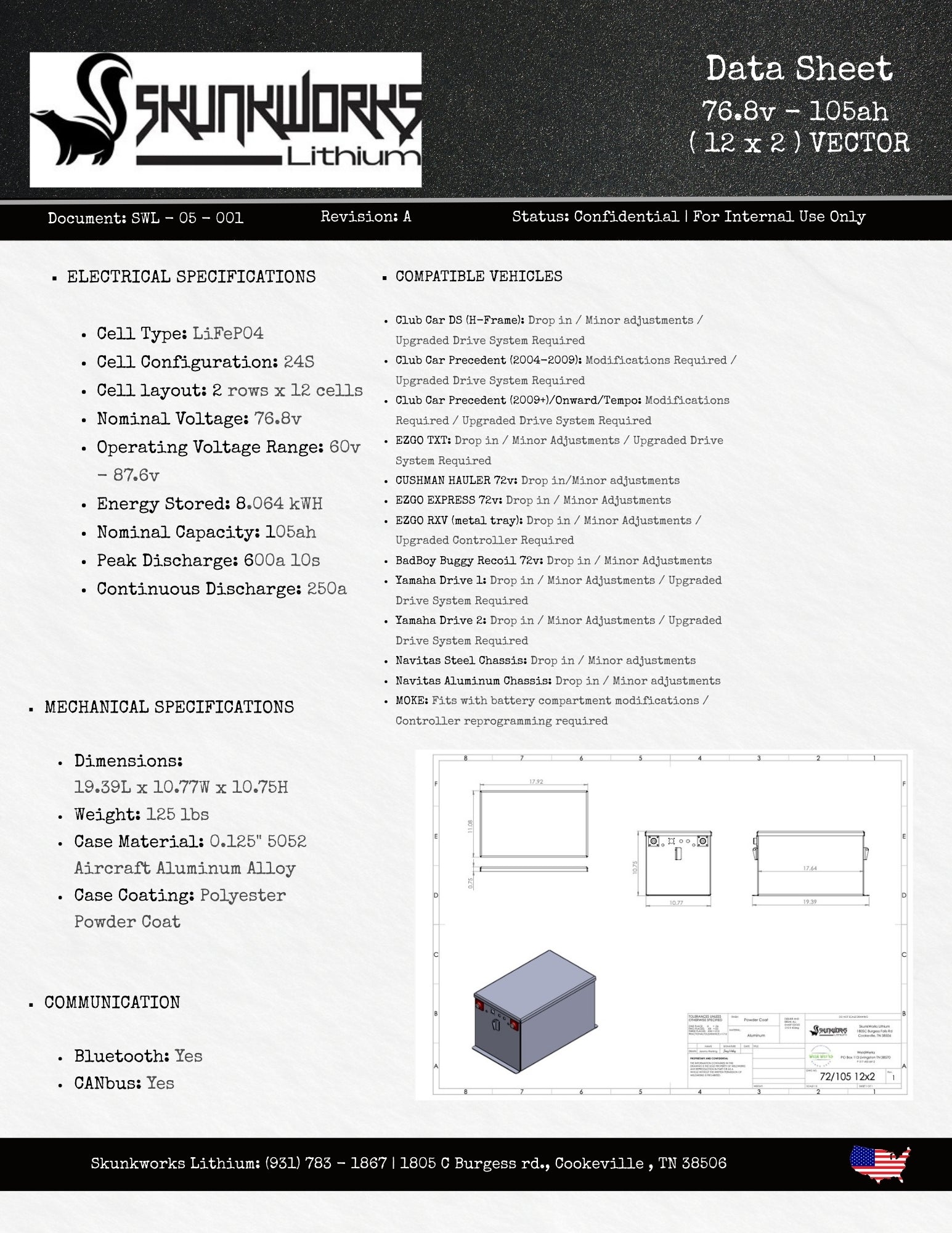

DATA SHEET LINK: (see product images)

INCLUDED COMPONENTS

Battery

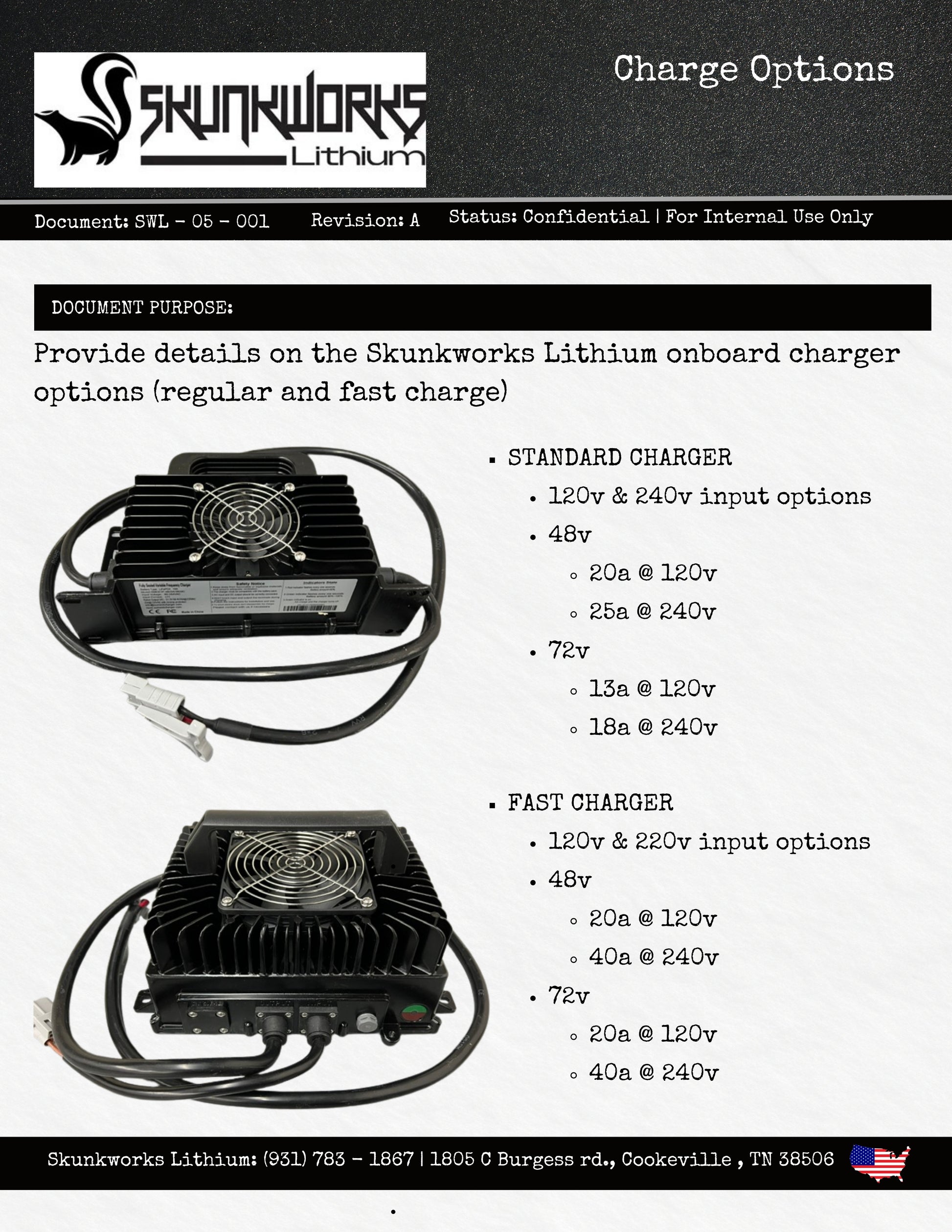

Onboard Charger

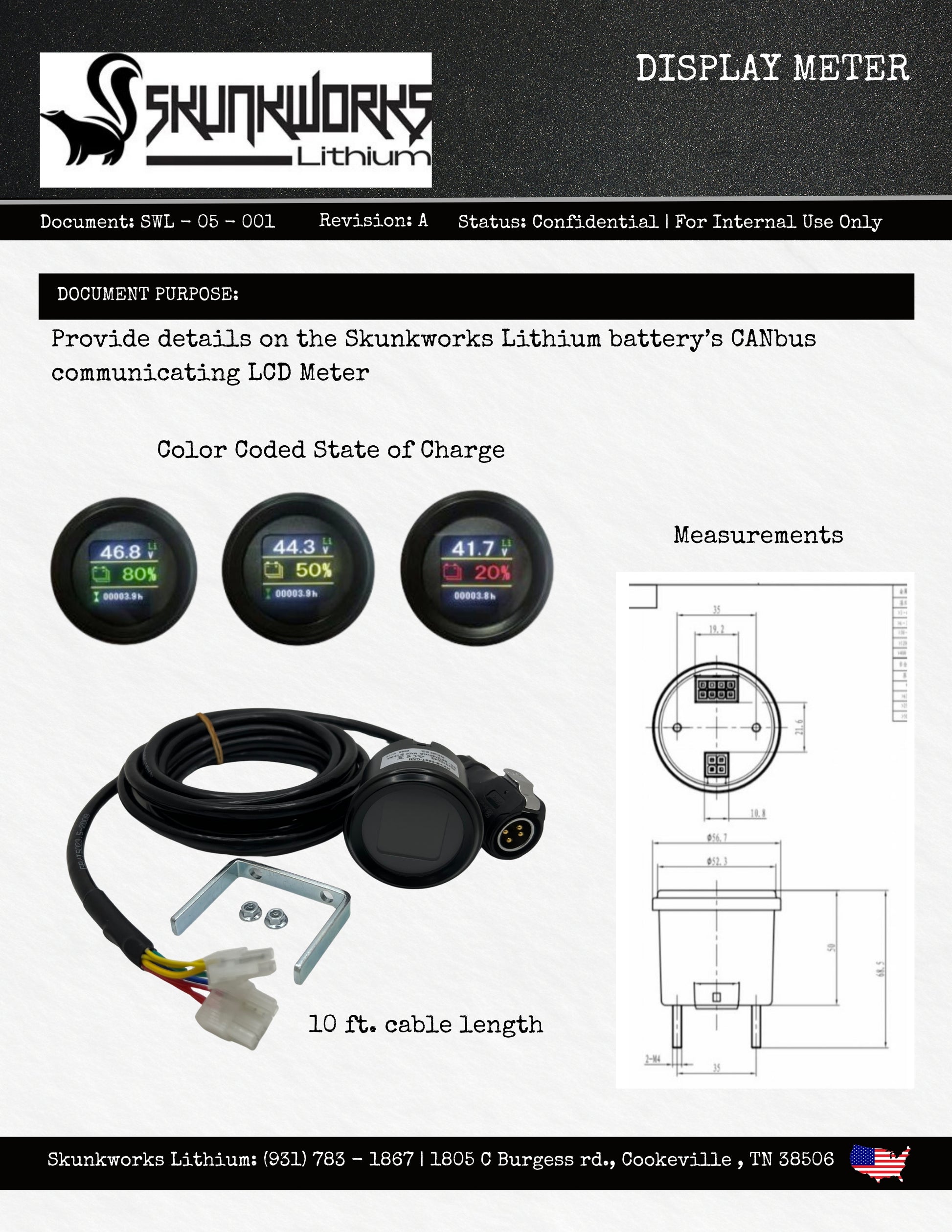

Battery Meter / Wiring Harness

PERFORMANCE EXPECTATIONS

RANGE: (under average load) 2/4 seater = 70 miles+ | 6 seater = 55 miles+

WEIGHT SAVINGS: 250 lbs

SPEED INCREASE: 1-2 MPH due to weight loss

TORQUE INCREASE: Noticeable torque increase

SERVICE LIFE: 3500+ life cycles

TECHNICAL SUPPORT

By phone Mon-Fri 9-5 @ (931) 783-1867

By email -

WARRANTY

- 5 YEAR WARRANTY

- LINK:

INSTALLATION VIDEOS

- Coming soon
