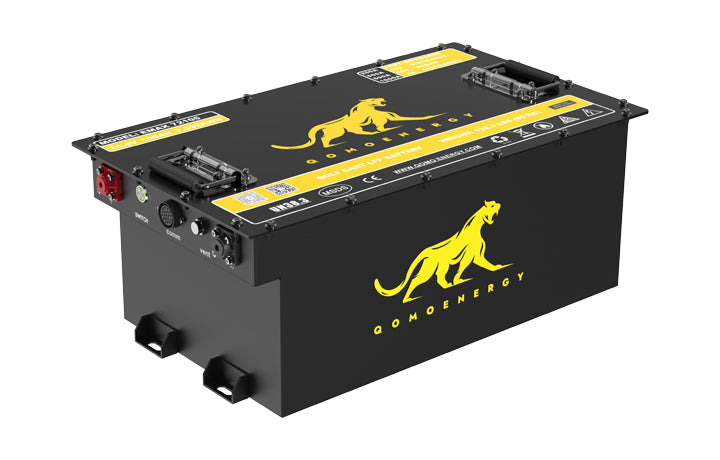

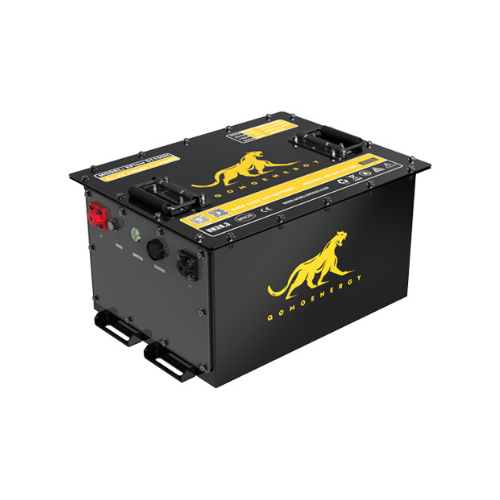

Qomolander 72v - 105ah (EMax) Battery & Installation Kit

This is the 70.4v - 105ah (EMAX) lithium golf cart battery and installation kit by QOMOLANDER.

COMPANY PROFILE

NAME: Qomolander

DOING BUSINESS SINCE:

OWNER:

ADDRESS:

Phone Number:

Website: www.qomoenergy.com

BATTERY FEATURES

BLUETOOTH: Yes

MOBILE APPLICATION: Yes

CAN COMMUNICATION: Yes

OWNER'S MANUAL: Yes, online

SELF HEATING: No

INTEGRATION WITH OEM DISPLAY CLUSTERS: No

REQUIRES UPGRADED DRIVE SYSTEM: Yes - 72v drive system

BATTERY SPECIFICATIONS

VOLTAGE: 70.4v

WORKING VOLTAGE RANGE: 70v-78v

AMP HOUR RATING: 105ah

ENERGY: 7392 kWh

CELL TYPE: LiFeP04

CELL CONFIGURATION: p - s

PEAK DISCHARGE CURRENT: 500a (15s)

CONTINUOUS DISCHARGE CURRENT: 250a

BMS LOW VOLTAGE CUT-OFF: 68v

RECOMMENDED DISCHARGE TEMPERATURE RANGE: -14 to 131F

CHARGING TEMPERATURE RANGE: 34F - 131F

DIMENSIONS: 21.7" x 13.4" x 9.9"

WEIGHT: 132 lb

CASE TYPE: Powder coated steel

ENCLOSURE RATING: IP67

TERMINAL TYPE: M8

SELF DISCHARGE: 3% / Mo.

DATA SHEET LINK: https://www.qomoenergy.com/application/index1.html

INCLUDED COMPONENTS

Battery

Onboard Charger

Dash Mounted Battery Gauge

Charge Port Replacement

Mounting Bracket / Hardware

12v Voltage Reducer

PERFORMANCE EXPECTATIONS

RANGE: (under average load) 2/4 seater = 95-100 miles | 6 Seater = 75-80 miles

WEIGHT SAVINGS: 200 lbs

SPEED INCREASE: 1-2 mph

TORQUE INCREASE: Noticeable torque increase

SERVICE LIFE: 3,500+ life cycles

TECHNICAL SUPPORT

By message through company website. Qomolander does have a US based battery technician available to help.

WARRANTY

5 YEAR WARRANTY (100%)

LINK: https://www.qomoenergy.com/service/warranty.html

INSTALLATION VIDEOS

• Coming Soon
