Lithium Rhino - 38.4v - 105ah Lithium Golf Cart Battery & Installation Kit

This is the 38.4v - 105ah lithium golf cart battery and installation kit by LITHIUM RHINO.

COMPANY PROFILE

NAME: Lithium Rhino

DOING BUSINESS SINCE: 2023

OWNER: Michael McDonald

ADDRESS: NA

Phone Number: (813) 336-2457

Website: www.lithiumrhino.com

BATTERY FEATURES

BLUETOOTH: Yes

MOBILE APPLICATION: Yes

REMOTE DIAGNOSTICS: Yes

CAN COMMUNICATION: Yes

OWNER'S MANUAL: Yes

SELF HEATING: No

INTEGRATION WITH OEM DISPLAY CLUSTERS: NA

REQUIRES UPGRADED DRIVE SYSTEM: No, for 36v systems only

BATTERY SPECIFICATIONS

VOLTAGE: 51.2v

WORKING VOLTAGE RANGE: 32v-43.8v

AMP HOUR RATING: 105ah

ENERGY: 4,032 Wh

CELL TYPE: LiFeP04

CELL CONFIGURATION: 1P-12s

PEAK DISCHARGE CURRENT: 500a (30s)

CONTINUOUS DISCHARGE CURRENT: 200a

BMS LOW VOLTAGE CUT-OFF: 32.4v

RECOMMENDED DISCHARGE TEMPERATURE RANGE: -4 to 131F

CHARGING TEMPERATURE RANGE: 34F - 140F

DIMENSIONS: (LxWxH) 15.4" x 13.4" x 9.3"

WEIGHT: 75 lbs

CASE TYPE: Metal Shell - Iron Plate Baking Varnish

ENCLOSURE RATING: IP67

TERMINAL TYPE: M8

SELF DISCHARGE: 3% / Mo.

DATA SHEET LINK: www.lithiumrhino.com/105

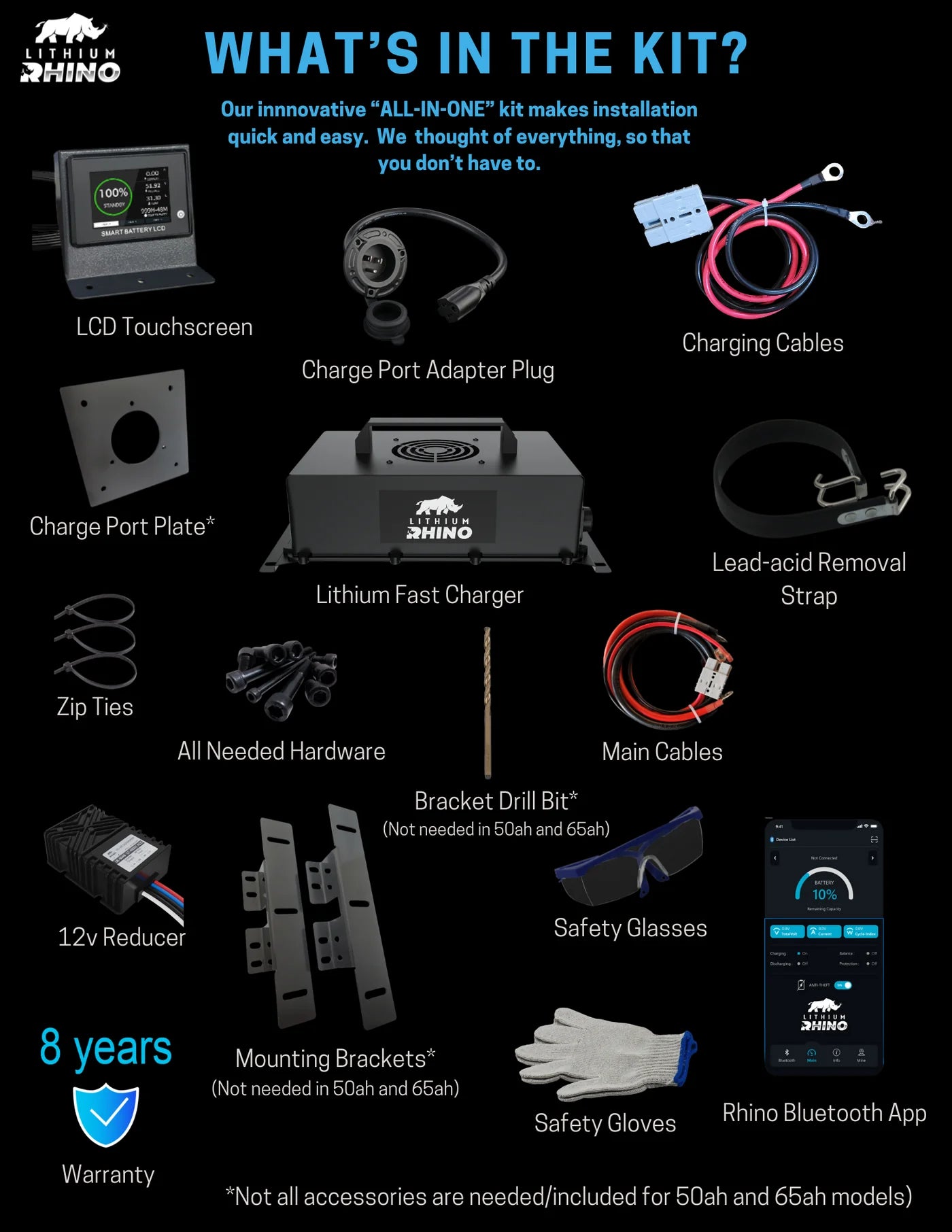

INCLUDED COMPONENTS

Battery

Onboard Charger

Battery Meter / Wiring Harness

12v Voltage Reducer / Wiring Harness

Mounting Bracket / Hardware

Main Battery Replacement Cables

AC Port Replacement

Owner's Manual

Safety Glasses - Gloves - ZipTies - Lead Battery Remover - Stickers

PERFORMANCE EXPECTATIONS

RANGE: (under average load) 2/4 seater = 20-25 miles

WEIGHT SAVINGS: 280 lbs

SPEED INCREASE: 1-2 MPH due to weight loss

TORQUE INCREASE: Noticeable torque increase

SERVICE LIFE: 3500+ life cycles

TECHNICAL SUPPORT

By phone Mon-Fri - 9am-5pm EST. @ (877)326-2288

By email - info@lithiumrhino.com

WARRANTY

- 8 YEAR WARRANTY (6 years at 100% & 2 years prorated)

- LINK: www.lithiumrhino.com/warranty

INSTALLATION VIDEOS

- www.youtube.com/lLithiumRhino/TXT/Installation
