This is the 70.4v - 105ah lithium golf cart battery and installation kit by EPOCH BATTERIES.
NAME: Epoch Batteries
DOING BUSINESS SINCE: 2022
OWNER:
ADDRESS: 164 Andrew Dr. - Stockbridge, GA 30281
Phone Number: (888) 501-1846s
Website: www.epochbatteries.com
BATTERY FEATURES
BLUETOOTH: Yes
MOBILE APPLICATION: Yes
CAN COMMUNICATION: Yes
OWNER'S MANUAL: Yes
SELF HEATING: No
INTEGRATION WITH OEM DISPLAY CLUSTERS: No
REQUIRES UPGRADED DRIVE SYSTEM: Compatible with factory 72v drive systems and upgraded AC drive systems.
BATTERY SPECIFICATIONS
VOLTAGE: 70.4v
WORKING VOLTAGE RANGE: 55v-79.2v
AMP HOUR RATING: 105ah
ENERGY: 8.12 kWh
CELL TYPE: LiFeP04
CELL CONFIGURATION: 1p - 22s
PEAK DISCHARGE CURRENT: 1000a (2s) - 500a (15s)
CONTINUOUS DISCHARGE CURRENT: 250a
BMS LOW VOLTAGE CUT-OFF: 55v
RECOMMENDED DISCHARGE TEMPERATURE RANGE: -20 to 151F
CHARGING TEMPERATURE RANGE: 34F - 140F
DIMENSIONS: (LxWxH) 21.7" x 13.4" x 9.9"
WEIGHT: 132 lbs each
CASE TYPE: Powder coated steel
ENCLOSURE RATING: IP67
TERMINAL TYPE: M8
SELF DISCHARGE: 1% / Mo.
DATA SHEET LINK: www.epochbatteries.com
INCLUDED COMPONENTS
Battery
Onboard Charger
Dash Mounted Battery Gauge
12v Voltage Reducer
Charge Port Replacement

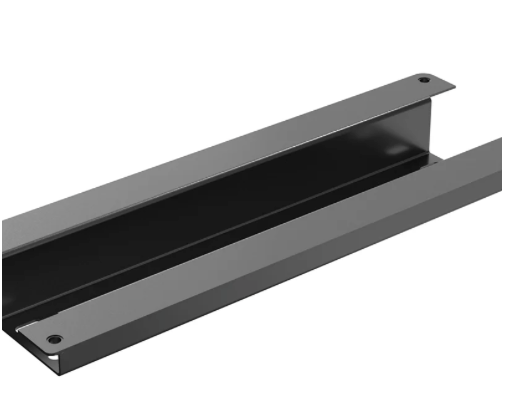

Mounting Brackets / Hardware
PERFORMANCE EXPECTATIONS
RANGE: (under average load) 2/4 seater = 60-65 miles | 6 seater = 40-45 miles
WEIGHT SAVINGS: 200 lbs
SPEED INCREASE: 1-2 MPH due to weight loss
TORQUE INCREASE: Noticeable torque increase
SERVICE LIFE: 3,500+ life cycles
TECHNICAL SUPPORT
By phone Mon-Fri - 9am-5pm EST. - Schedule tech support online
www.epochbatteries.com/support
WARRANTY
11 YEAR WARRANTY (3 years at 100% & 9 years prorated)
LINK: www.eposchbatteries.com/warranty
INSTALLATION VIDEOS
