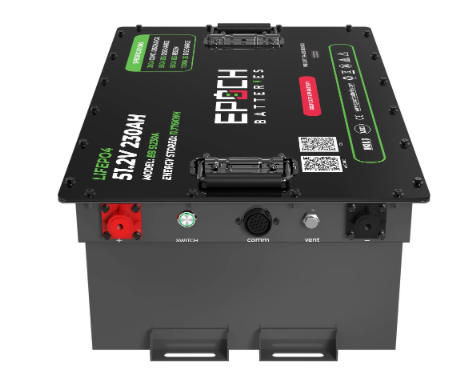

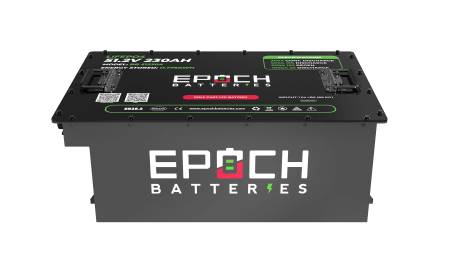

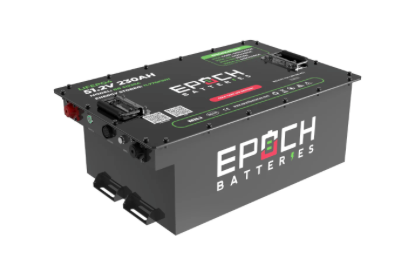

Epoch Batteries 48v - 230ah EXTENDED RANGE Lithium Golf Cart Battery & Installation Kit

This is the 51.2v - 230ah (Extended Range) lithium golf cart battery and installation kit by EPOCH BATTERIES.

COMPANY PROFILE

NAME: Epoch Batteries

DOING BUSINESS SINCE: 2022

OWNER:

ADDRESS: 164 Andrew Dr. - Stockbridge, GA 30281

Phone Number: (888) 501-1846s

Website: www.epochbatteries.com

BATTERY FEATURES

BLUETOOTH: Yes

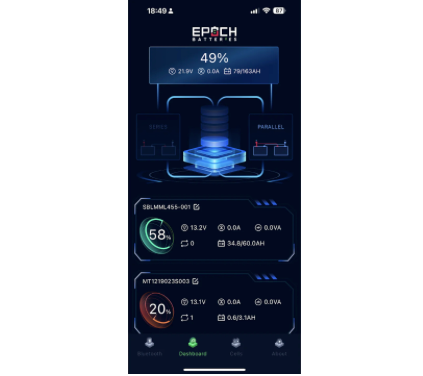

MOBILE APPLICATION: Yes

CAN COMMUNICATION: Yes

OWNER'S MANUAL: Yes

SELF HEATING: No

INTEGRATION WITH OEM DISPLAY CLUSTERS: No

REQUIRES UPGRADED DRIVE SYSTEM: No

BATTERY SPECIFICATIONS

VOLTAGE: 51.2v

WORKING VOLTAGE RANGE: 48v-57v

AMP HOUR RATING: 230ah

ENERGY: 11.776 kWh

CELL TYPE: LiFeP04

CELL CONFIGURATION: 1p - 16s

PEAK DISCHARGE CURRENT: 1000a (2s) 500a (15s)

CONTINUOUS DISCHARGE CURRENT: 300a

BMS LOW VOLTAGE CUT-OFF: 43.2v

RECOMMENDED DISCHARGE TEMPERATURE RANGE: -20 to 151F

CHARGING TEMPERATURE RANGE: 34F - 140F

DIMENSIONS: (LxWxH) 23.5" x 14.4" x 9.9"

WEIGHT: 196 lbs

CASE TYPE: Powder coated steel

ENCLOSURE RATING: IP67

TERMINAL TYPE: M8

SELF DISCHARGE: 1% / Mo.

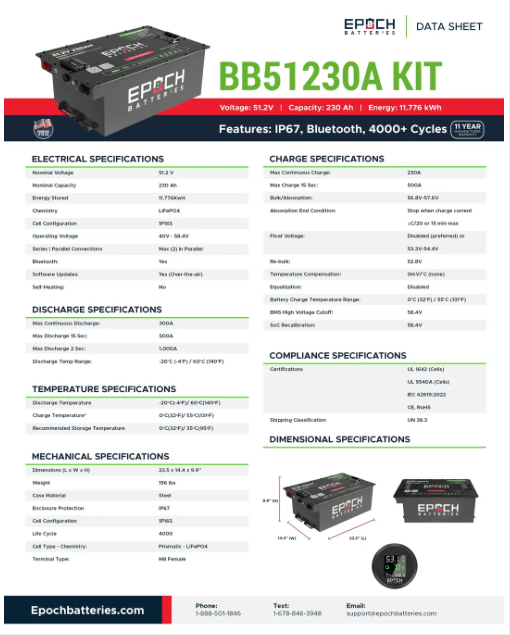

DATA SHEET LINK: www.epochbatteries.com

INCLUDED COMPONENTS

Battery

Onboard Charger

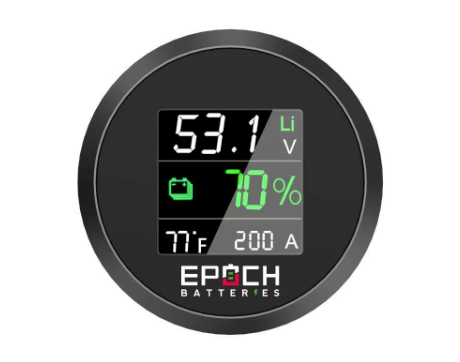

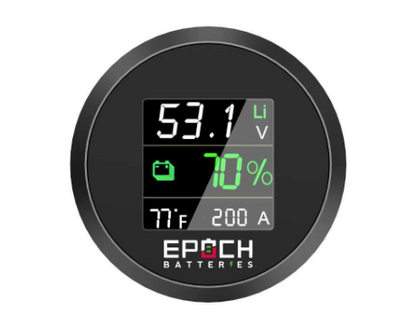

Dash Mounted Battery Gauge / Wiring Harness

12v Voltage Reducer

AC Charge Port Replacement

Mounting Brackets / Hardware

Wake Up Button

PERFORMANCE EXPECTATIONS

RANGE: (under average load) 2/4 seater = 35-40 miles

WEIGHT SAVINGS: 245 lbs

SPEED INCREASE: 1-2 MPH due to weight loss

TORQUE INCREASE: Noticeable torque increase

SERVICE LIFE: 4,000+ life cycles

TECHNICAL SUPPORT

By phone Mon-Fri - 9am-5pm EST. - Schedule tech support online

www.epochbatteries.com/support

WARRANTY

11 YEAR WARRANTY (3 years at 100% & 9 years prorated)

LINK: www.eposchbatteries.com/warranty

INSTALLATION VIDEOS

• Coming Soon
