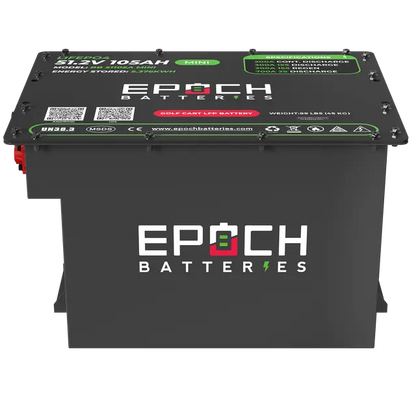

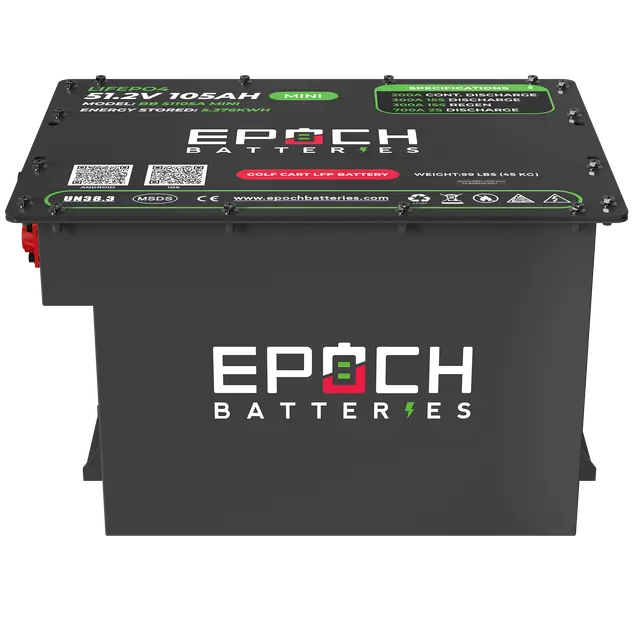

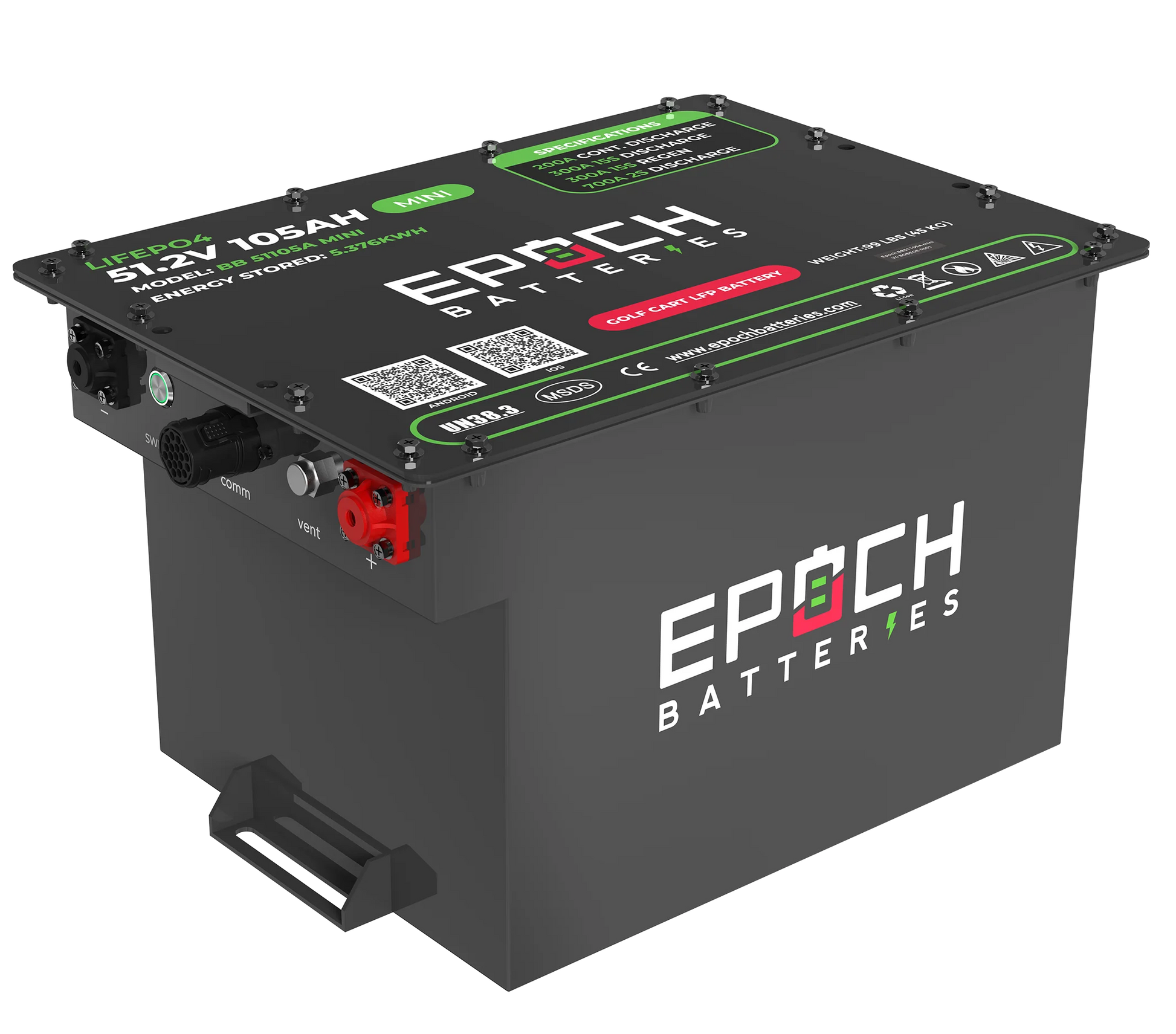

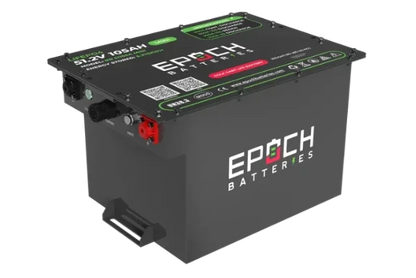

Epoch Batteries 48v - 105ah MINI Battery & Installation Kit
Epoch Batteries 48v - 105ah MINI Battery & Installation Kit
Couldn't load pickup availability
48V Lithium Battery Upgrade Kit for Golf Cart Conversion Projects
The Epoch Batteries 48V 105Ah MINI Battery Installation Kit is a smart lithium conversion package for owners who want more range, lighter weight, and a cleaner power setup. Built on a 51.2V LiFePO4 platform, this system replaces aging lead-acid banks with a more efficient, low-maintenance solution for neighborhood drives, course use, and everyday utility.
As a complete battery installation kit, it brings together the core components needed for a smoother upgrade while helping simplify the move to a modern 48v lithium battery platform.
What Makes This MINI Battery Package Different
This mini battery setup is designed to deliver stable output, straightforward monitoring, and reliable daily performance. Its compact layout supports easier fitment, while the smart features make it simpler to track charge status and system health without the guesswork that often comes with traditional battery banks.
- Bluetooth connectivity for wireless monitoring
- Mobile app support for status checks and battery data
- CAN communication for compatible integration
- Compact footprint for easier installation planning
- Powder-coated steel case for added protection
- IP67-rated enclosure against dust and water intrusion
Battery Features That Simplify Ownership
From installation day through regular use, this 105ah battery package is built to keep ownership simple. It includes monitoring tools and support resources that help reduce maintenance chores while improving visibility into performance.
- Owner's manual included
- Bluetooth connectivity: Yes
- Mobile application: Yes
- CAN communication: Yes
- Self heating: No
- OEM display cluster integration: No
- Upgraded drive system required: No
51.2V 105Ah Battery Specifications
Review the technical details below to confirm fitment, charging needs, and expected runtime before you place your order.
- Nominal voltage: 51.2V
- Working voltage range: 48V to 57V
- Capacity: 105Ah
- Energy storage: 5.376 kWh
- Cell chemistry: LiFePO4
- Cell configuration: 1p - 16s
- Peak discharge current: 700A for 2 seconds, 300A for 15 seconds
- Continuous discharge current: 200A
- BMS low-voltage cut-off: 43.2V
- Recommended discharge temperature: -20 to 151F
- Charging temperature: 34F to 140F

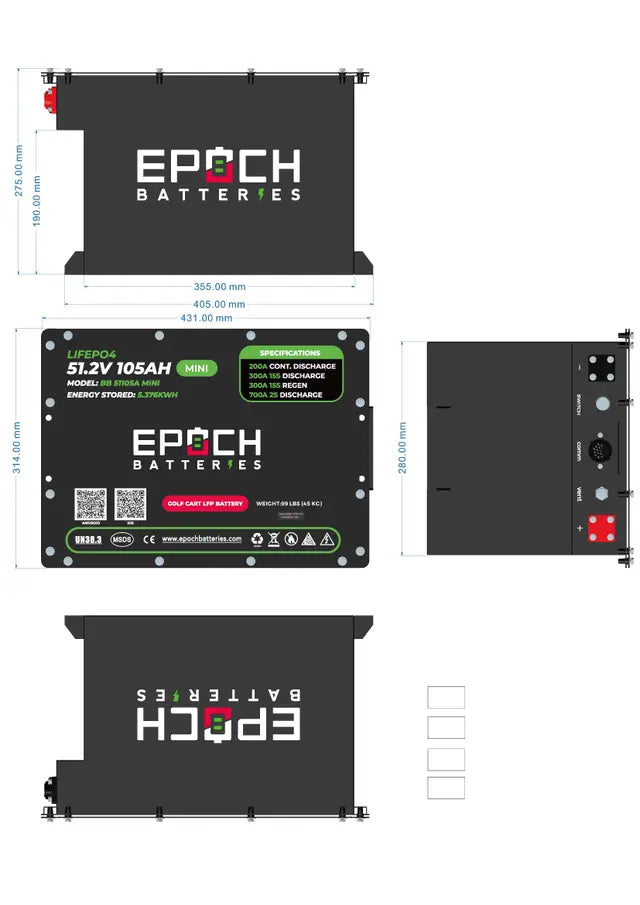

- Dimensions: 15.8 in x 11.1 in x 10.9 in
- Weight: 99 lbs each
- Case type: Powder-coated steel
- Enclosure rating: IP67
- Terminal type: M8
- Self-discharge: 1% per month

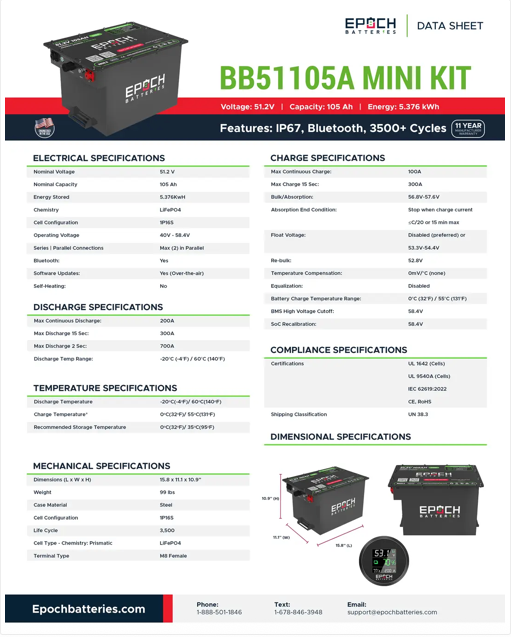

- Data sheet: Download the product data sheet

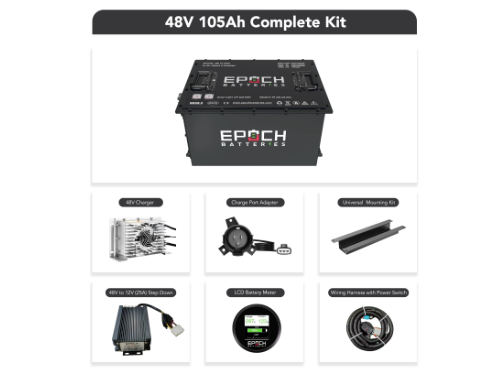

Included Parts for a Cleaner Conversion
This golf cart battery bundle helps reduce the hassle of sourcing extra parts by packaging the main components most owners need for a streamlined upgrade.
- Battery
- Onboard charger

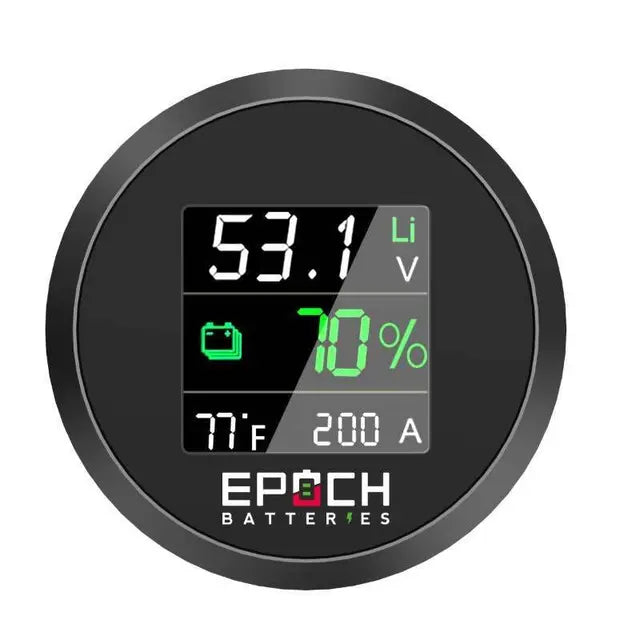

- Dash-mounted battery gauge
- 12V voltage reducer
- Charge port replacement
- Mounting brackets and hardware
- Wake-up button
Expected Benefits After the Lithium Conversion
When installed on a compatible cart, this lithium setup can improve responsiveness and reduce unnecessary weight. Actual results depend on terrain, passenger load, and vehicle condition, but many owners notice a smoother ride and more efficient power delivery.
- Estimated range: 40 to 45 miles on a 2- or 4-seater under average load
- Weight savings: About 270 lbs
- Speed gain: 1 to 2 MPH from reduced weight
- Torque improvement: Stronger acceleration off the line
- Service life: 3,000+ cycles
How to Check Fitment Before You Buy
Before choosing this battery installation kit, confirm that your cart has enough compartment space for the listed dimensions and that your system operates within the supported voltage range. If you are replacing lead-acid batteries, the included charger, reducer, and mounting hardware can make the transition easier.
For many buyers, the appeal of this mini battery package is the convenience of getting a high-capacity lithium system and the necessary accessories in one order.
Brand Support, Warranty Coverage, and Company Details
Epoch Batteries offers phone support Monday through Friday from 9am to 5pm EST, along with online scheduling for technical assistance. That gives owners a clear path to get help before installation or after the system is in use.
Brand: Epoch Batteries
Doing business since: 2022
Address: 164 Andrew Dr., Stockbridge, GA 30281
Phone: (888) 501-1846
Website: www.epochbatteries.com
Warranty: 11 years total coverage, including 3 years at 100% and 9 years prorated.
Warranty link: Review the warranty details
Frequently Asked Questions About This 48V Golf Cart Battery
Will this battery fit my golf cart?
This kit is designed for carts that operate in the 48V to 57V range. Check compartment clearance, cable routing, and controller compatibility before ordering.
Does it require a special drive system?
In many common applications, no upgraded drive system is needed. The package is intended as a practical lithium replacement for a wide range of golf cart setups.
Can I monitor the battery from my phone?
Yes. Bluetooth support and mobile app access make it easier to view battery status, review usage data, and stay informed during charging.
What kind of maintenance does lithium need?
Maintenance is minimal compared with lead-acid systems. Keep the battery charged according to the guidelines, and use the app or gauge to stay on top of basic performance.
Upgrade Your Cart with the Epoch Batteries 48V 105Ah MINI Battery Installation Kit
If you are ready for a more efficient 48v lithium battery solution, this package offers dependable output, useful monitoring, and the convenience of a complete conversion-ready bundle. It is an excellent choice for shoppers who want a long-lasting golf cart battery upgrade with fewer installation headaches.
