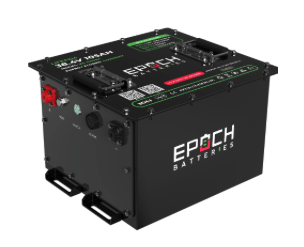

Epoch Batteries 36v - 105ah Lithium Golf Cart Battery & Installation Kit

This is the 38.4v - 105ah lithium golf cart battery and installation kit by EPOCH BATTERIES

COMPANY PROFILE

NAME: Epoch Batteries

DOING BUSINESS SINCE: 2022

OWNER:

ADDRESS: 164 Andrew Dr. - Stockbridge, GA 30281

Phone Number: (888) 501-1846s

Website: www.epochbatteries.com

BATTERY FEATURES

BLUETOOTH: Yes

MOBILE APPLICATION: Yes

CAN COMMUNICATION: Yes

OWNER'S MANUAL: Yes

SELF HEATING: No

INTEGRATION WITH OEM DISPLAY CLUSTERS: No

REQUIRES UPGRADED DRIVE SYSTEM: No

BATTERY SPECIFICATIONS

VOLTAGE: 38.4v

WORKING VOLTAGE RANGE: 30v-43.8v

AMP HOUR RATING: 105ah

ENERGY: 4.032 kWh

CELL TYPE: LiFeP04

CELL CONFIGURATION: 1p - 12s

PEAK DISCHARGE CURRENT: 700a (2s) - 300a (15s)

CONTINUOUS DISCHARGE CURRENT: 200a

BMS LOW VOLTAGE CUT-OFF: 30v

RECOMMENDED DISCHARGE TEMPERATURE RANGE: -20 to 151F

CHARGING TEMPERATURE RANGE: 34F - 140F

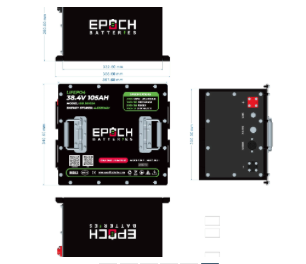

DIMENSIONS: (LxWxH) 14.6" x 13.4" x 9.9"

WEIGHT: 81 lbs each

CASE TYPE: Powder coated steel

ENCLOSURE RATING: IP67

TERMINAL TYPE: M8

SELF DISCHARGE: 1% / Mo.

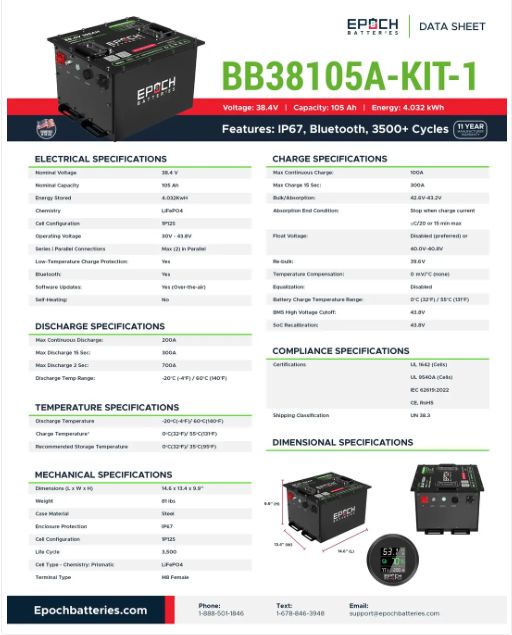

DATA SHEET LINK: www.epochbatteries.com

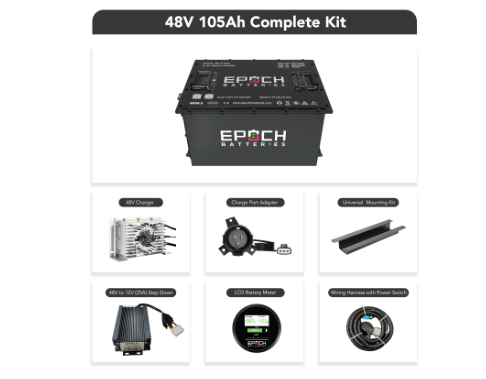

INCLUDED COMPONENTS

Battery

Onboard Charger

Dash Mounted Battery Gauge

12v Voltage Reducer

Charge Port Replacement

Mounting Brackets / Hardware

WAKE UP BUTTON

PERFORMANCE EXPECTATIONS

RANGE: (under average load) 2/4 seater = 25-35 miles

WEIGHT SAVINGS: 315 lbs

SPEED INCREASE: 1-2 MPH due to weight loss

TORQUE INCREASE: Noticeable torque increase

SERVICE LIFE: 3,000+ life cycles

TECHNICAL SUPPORT

By phone Mon-Fri - 9am-5pm EST. - Schedule tech support online

www.epochbatteries.com/support

WARRANTY

11 YEAR WARRANTY (3 years at 100% & 9 years prorated)

LINK: www.eposchbatteries.com/warranty

INSTALLATION VIDEOS

• Coming Soon
