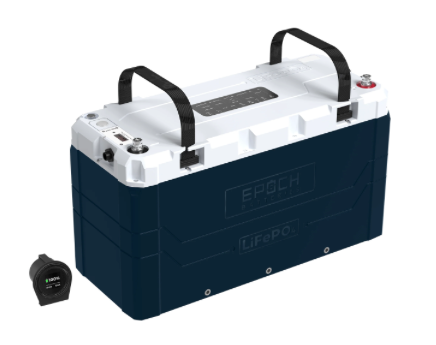

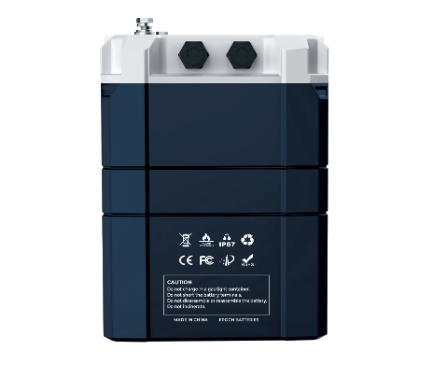

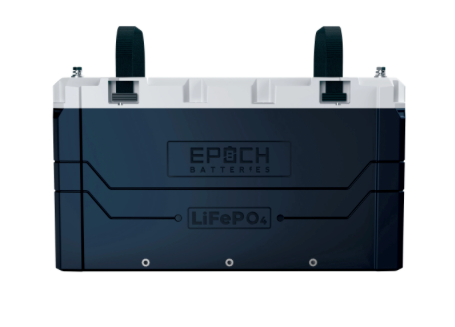

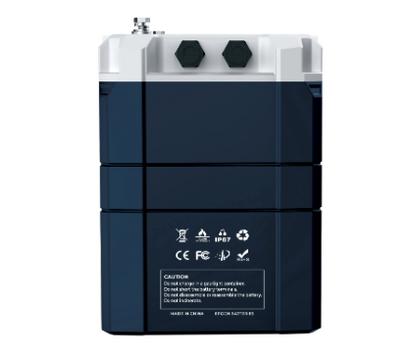

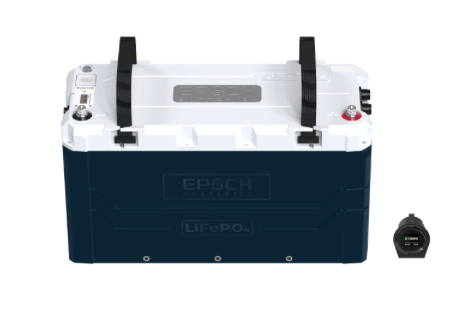

This is the 25.6v - 230ah Deep Cycle V2 ELITE SERIES Marine / RV / Solar Battery by EPOCH BATTERIES.
- Advanced features
NAME: Epoch Batteries
DOING BUSINESS SINCE: 2022
OWNER:
ADDRESS: 164 Andrew Dr. - Stockbridge, GA 30281
Phone Number: (888) 501-1846s
Website: www.epochbatteries.com
BATTERY FEATURES
BLUETOOTH: Yes
MOBILE APPLICATION: Yes
REMOTE DIAGNOSIS: Yes
REMOTE FIRMWARE UPDATE: Yes
CAN COMMUNICATION: Yes
OWNER'S MANUAL: Yes
SELF HEATING: Yes
VICTRON COMMUNICATING: Yes
COMPATIBLE WITH THE VEHICLE'S ONBOARD CHARGING SYSTEM:
Batteries employed in non-Victron systems should utilize the following settings:
Absorption voltage of 28.4V with an absorption time of a minimum of 15 minutes per battery.
Float voltage of 27.0V
Equalization off
No temperature compensation
To use the V2 Elite with Victron systems. Set up the battery comm harness and gauge as follows:
Plug with waterproof bung plugged into master blue port.
RJ45 cable out of master black port and into slave1 blue port.
RJ45 cable out of slave1 black port and into slave blue port and so on to daisy chain up to 16 batteries in parallel.
Set dips as per manual.
Plug in grey RJ45 plug into the Cerbo or Ekrano GX BMS CAN port or if you have the new Cerbo Mk2 plug grey plug inot VE-CAN1 or VE-CAN 2 and change the VE can port speed to 500 KBPS LV.
To confirm proper reporting, go to the GX/touch screen and confirm the Epoch battery shows up on the device list. Click on the battery line, go to Details. Check to see the number of modules online is equal to the number of batteries installed. Check that the number of AH is equal to the number of AH installed.
In the GX device/touch screen turn on DVCC, set controlling BMS to Epoch, set battery monitor to Epoch.
The system should say External Control on the GX touch screen Inverter tile when charging (but not while inverting). The system will automatically cycle to 28.4V with an absorption time of a minimum of roughly 15 minutes per battery followed by 27.0V float voltage.
It is recommended to manually program the Multiplus, Quattro and all other charge source to these same parameters in case of CAN communication loss.
Over time there will be additional refinements and improvements as needed.
BATTERY SPECIFICATIONS
VOLTAGE: 25.6v
AMP HOUR RATING: 230ah
ENERGY: 5.88 kWh
CELL TYPE: LiFeP04 - 4S/2P
VOLTAGE RANGE: 20-29.2
CONNECTIVITY: (8) series | (1) parallel
PEAK DISCHARGE CURRENT: 500a (30s)
CONTINUOUS DISCHARGE CURRENT: 230a
COLD CRANKING AMPS: NA
RECOMMENDED DISCHARGE TEMPERATURE RANGE: -4 to 140F
CHARGING TEMPERATURE RANGE: -22F - 131F with self heating
DIMENSIONS: (LxWxH) 20.75" x 8.5" x 12"
WEIGHT: 97 LBS
CASE TYPE: Plastic Shell
ENCLOSURE RATING: IP67
TERMINAL TYPE: M8 Female / 8-12 N.m
SELF DISCHARGE: 3% / Mo.

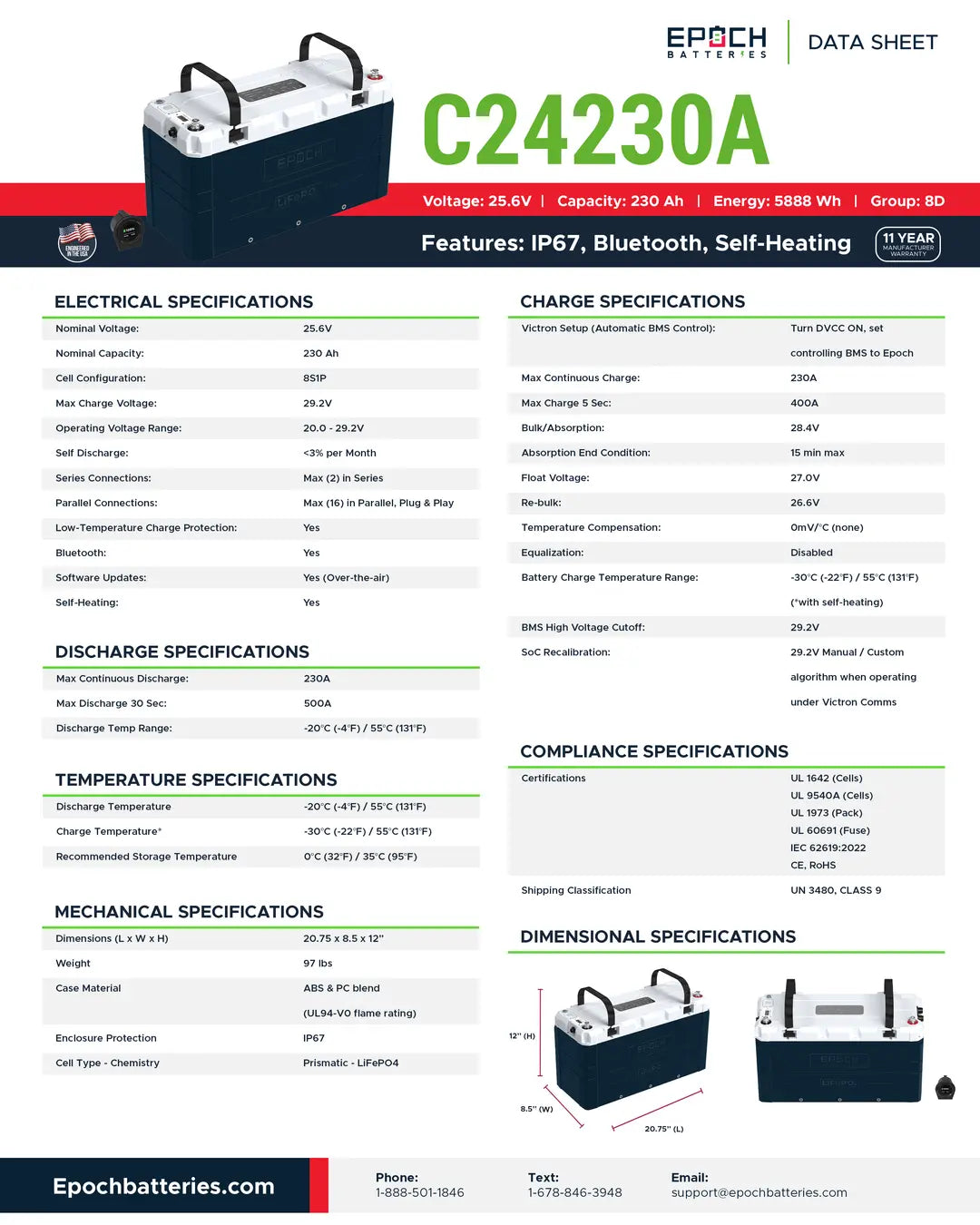

DATA SHEET LINK: www.epochbatteries.com
TECHNICAL SUPPORT
By phone Mon-Fri - 9am-5pm EST. - Schedule tech support online
www.epochbatteries.com/support
WARRANTY
11 YEAR WARRANTY (3 years at 100% & 9 years prorated)
LINK: www.eposchbatteries.com/warranty
