Epoch Batteries 12v - 300ah ESSENTIAL SERIES Deep Cycle Lithium Battery
Epoch Batteries 12v - 300ah ESSENTIAL SERIES Deep Cycle Lithium Battery
Couldn't load pickup availability

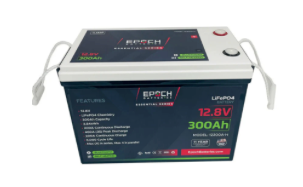

This is the 12.8v - 300ah Deep Cycle ESSENTIAL SERIES Marine Battery by EPOCH BATTERIES.
COMPANY PROFILE
ADDRESS: 164 Andrew Dr. - Stockbridge, GA 30281
Website: www.epochbatteries.com
BATTERY FEATURES
BLUETOOTH: Yes
MOBILE APPLICATION: Yes
CAN COMMUNICATION: Yes
OWNER'S MANUAL: No
SELF HEATING: Yes
INTEGRATION WITH OEM DISPLAY CLUSTERS: NA
COMPATIBLE WITH THE VEHICLE'S ONBOARD CHARGING SYSTEM: To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
- Float: 13.4V – 13.8V
- Equalization: 14.4V/ Disabled
- Temperature Compensation: 0/Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
BATTERY SPECIFICATIONS
VOLTAGE: 12.8v
AMP HOUR RATING: 300ah
ENERGY: 3.84 kWh
CELL TYPE: LiFeP04 - 4S/1P
VOLTAGE RANGE: 10-14.6
CONNECTIVITY: (4) series | (4) parallel
PEAK DISCHARGE CURRENT: 400a (3s)
CONTINUOUS DISCHARGE CURRENT: 200a
COLD CRANKING AMPS: NA
RECOMMENDED DISCHARGE TEMPERATURE RANGE: -4 to 140F
CHARGING TEMPERATURE RANGE: 34F - 140F
DIMENSIONS: (LxWxH) 13.75" x 7.63" x 10"
WEIGHT: 58 LBS
CASE TYPE: Plastic Shell
ENCLOSURE RATING: IP54
TERMINAL TYPE: M8 Female / 8-12 N.m
SELF DISCHARGE: 3% / Mo.

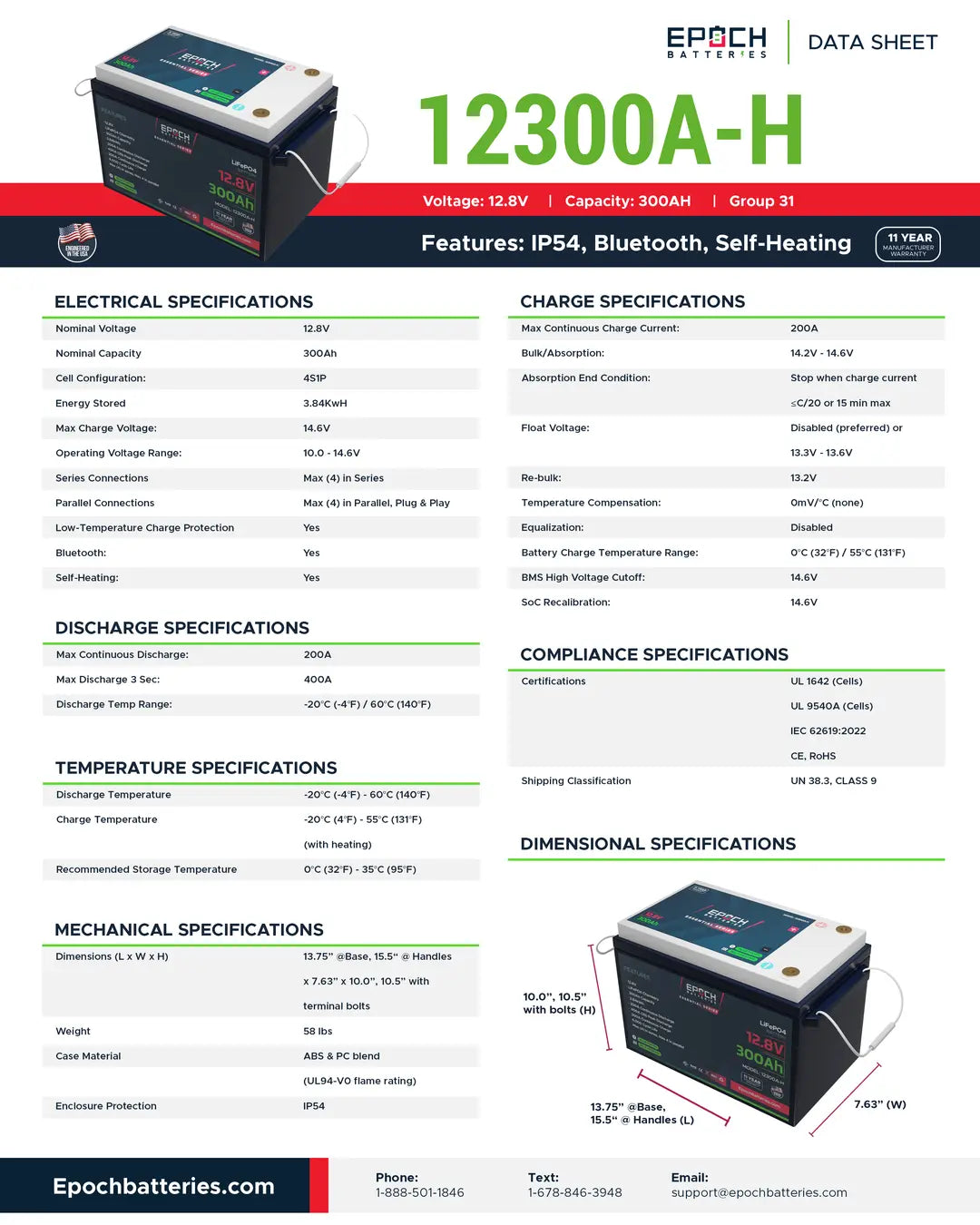

DATA SHEET LINK: www.epochbatteries.com
TECHNICAL SUPPORT
By phone Mon-Fri - 9am-5pm EST. - Schedule tech support online
www.epochbatteries.com/support
WARRANTY
11 YEAR WARRANTY (3 years at 100% & 9 years prorated)
LINK: www.eposchbatteries.com/warranty
INSTALLATION VIDEOS
- Coming Soon
