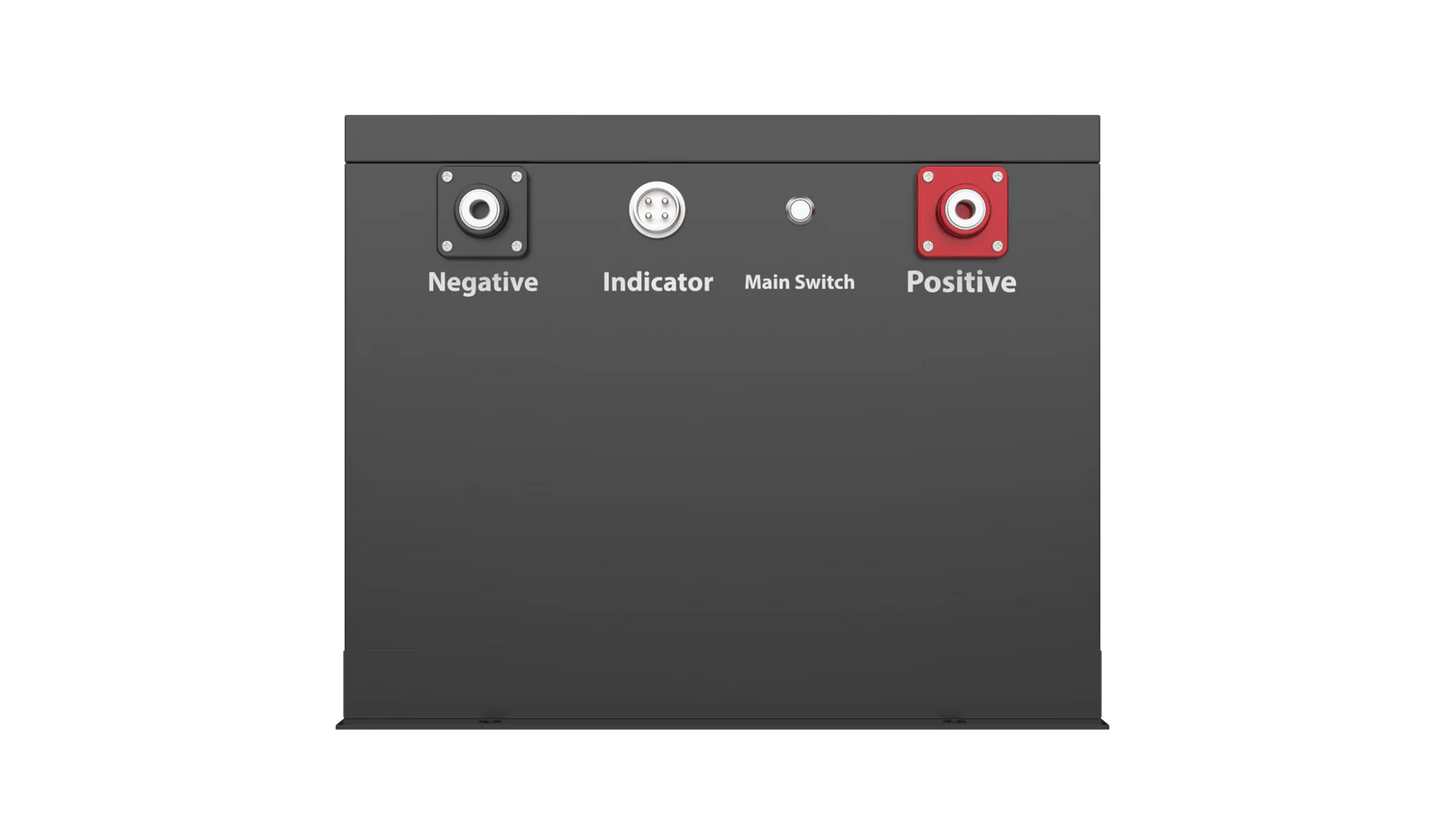

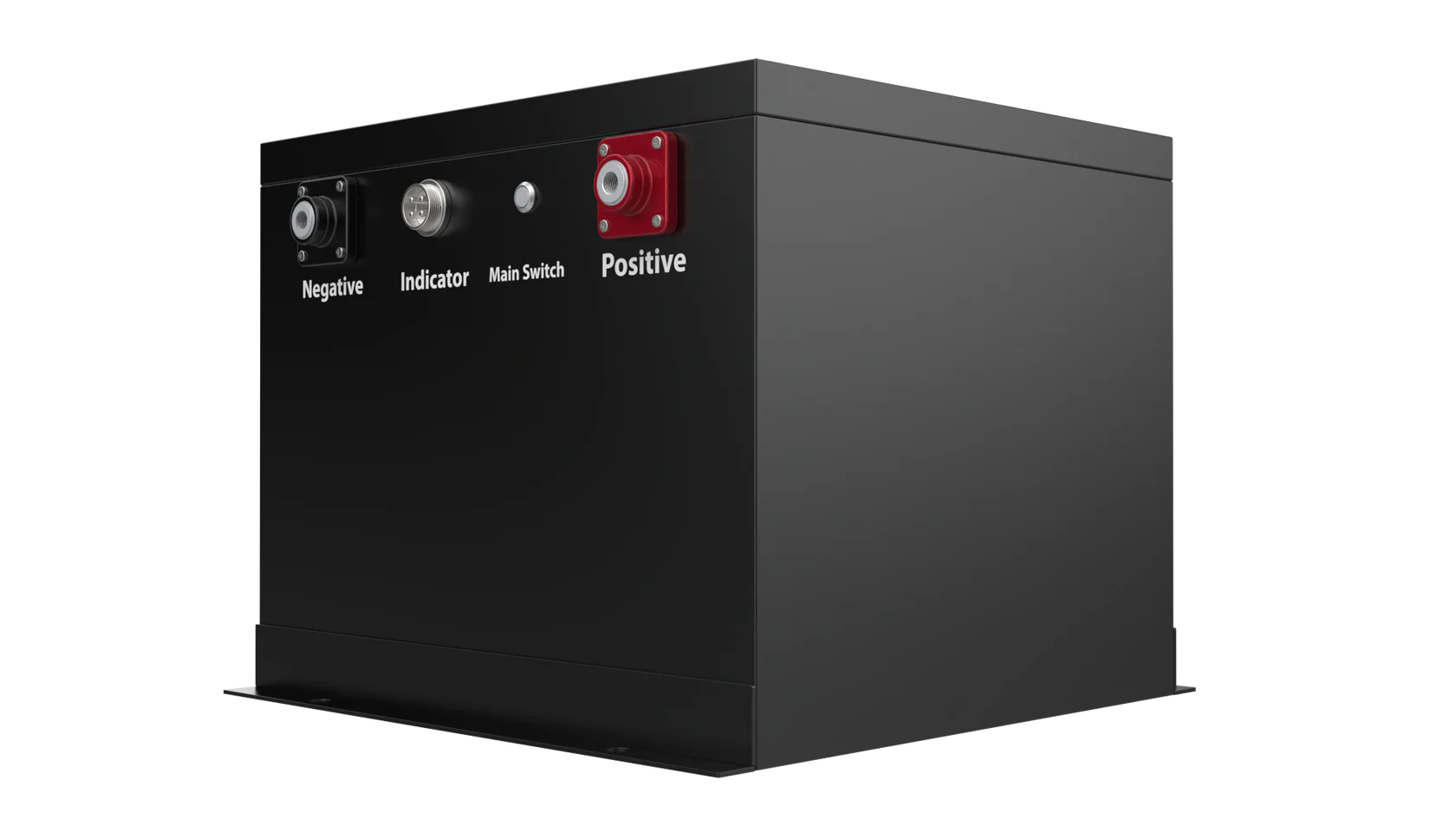

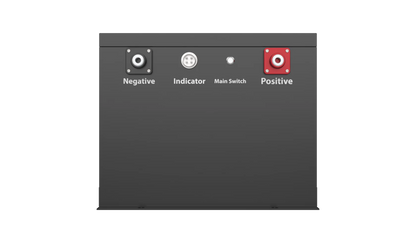

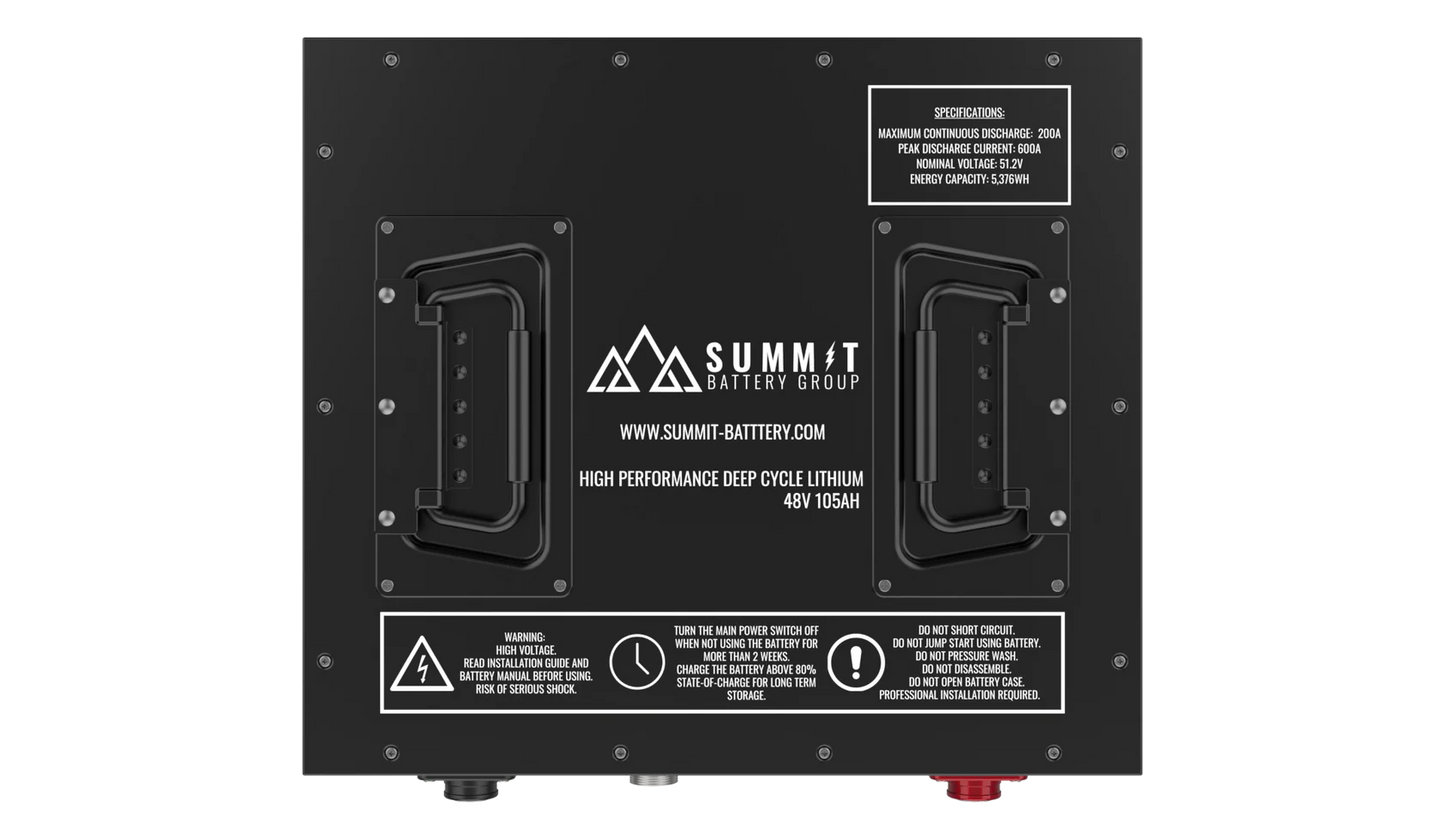

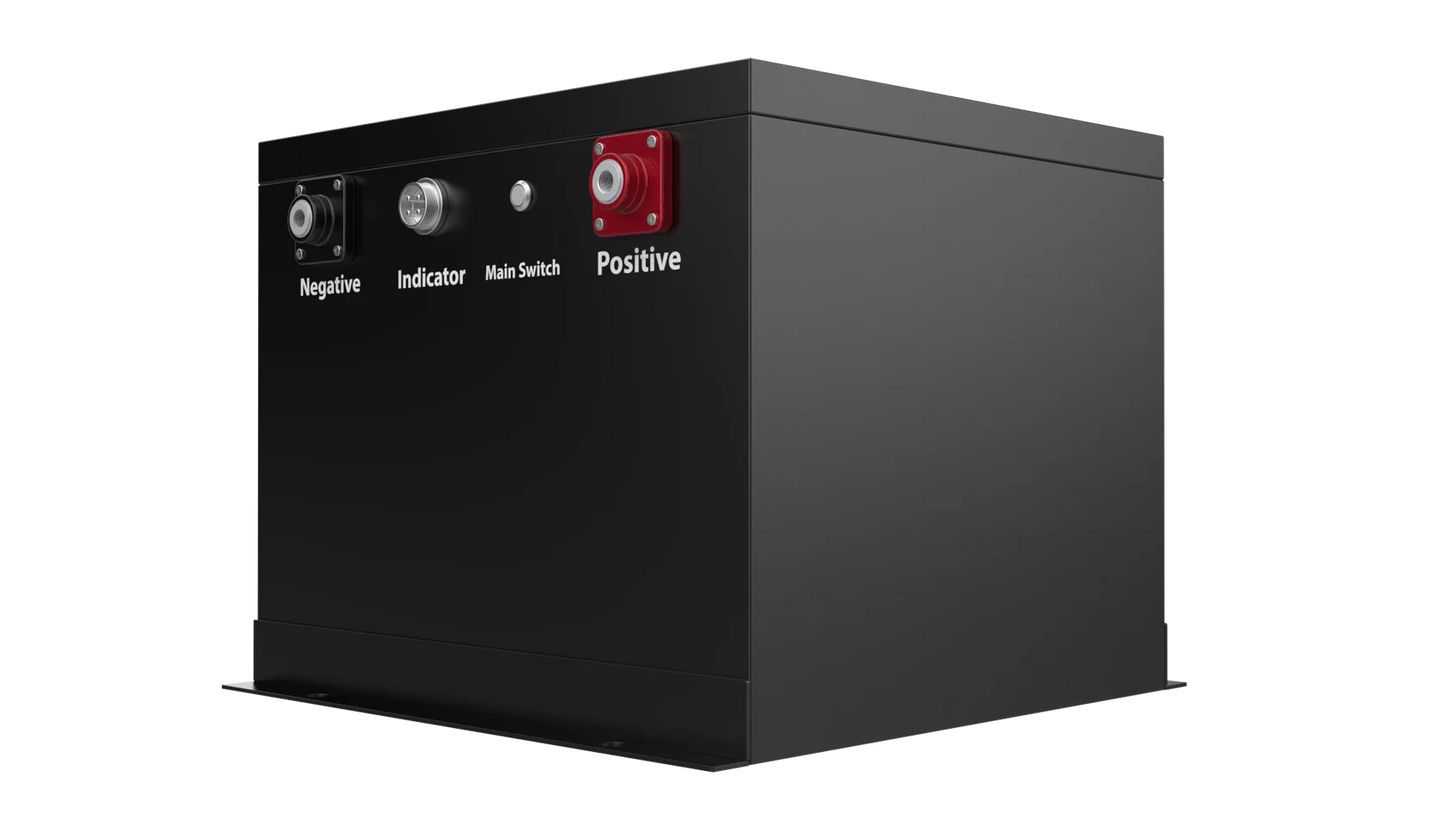

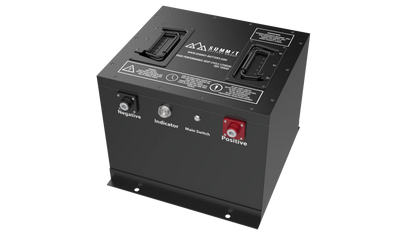

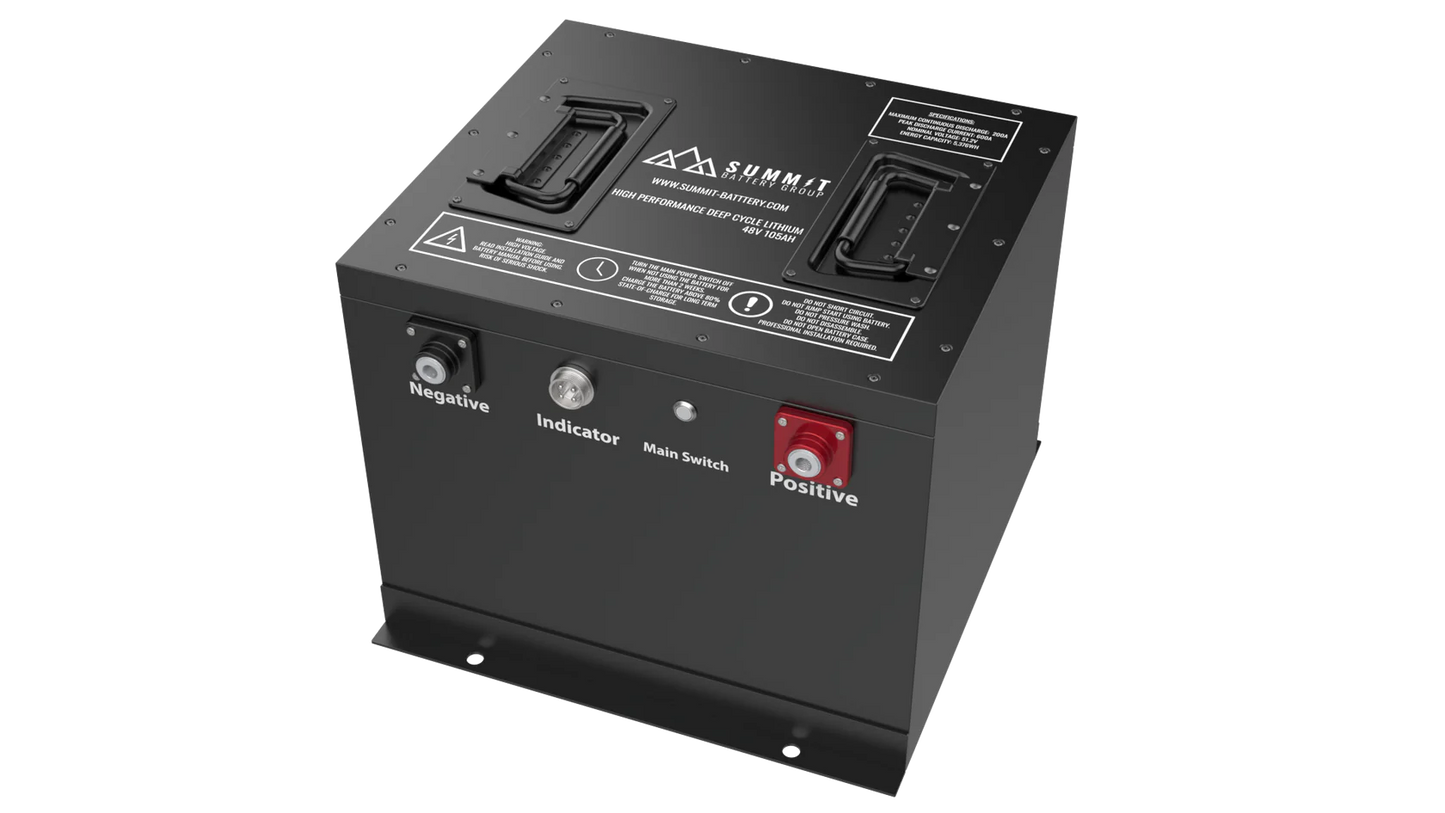

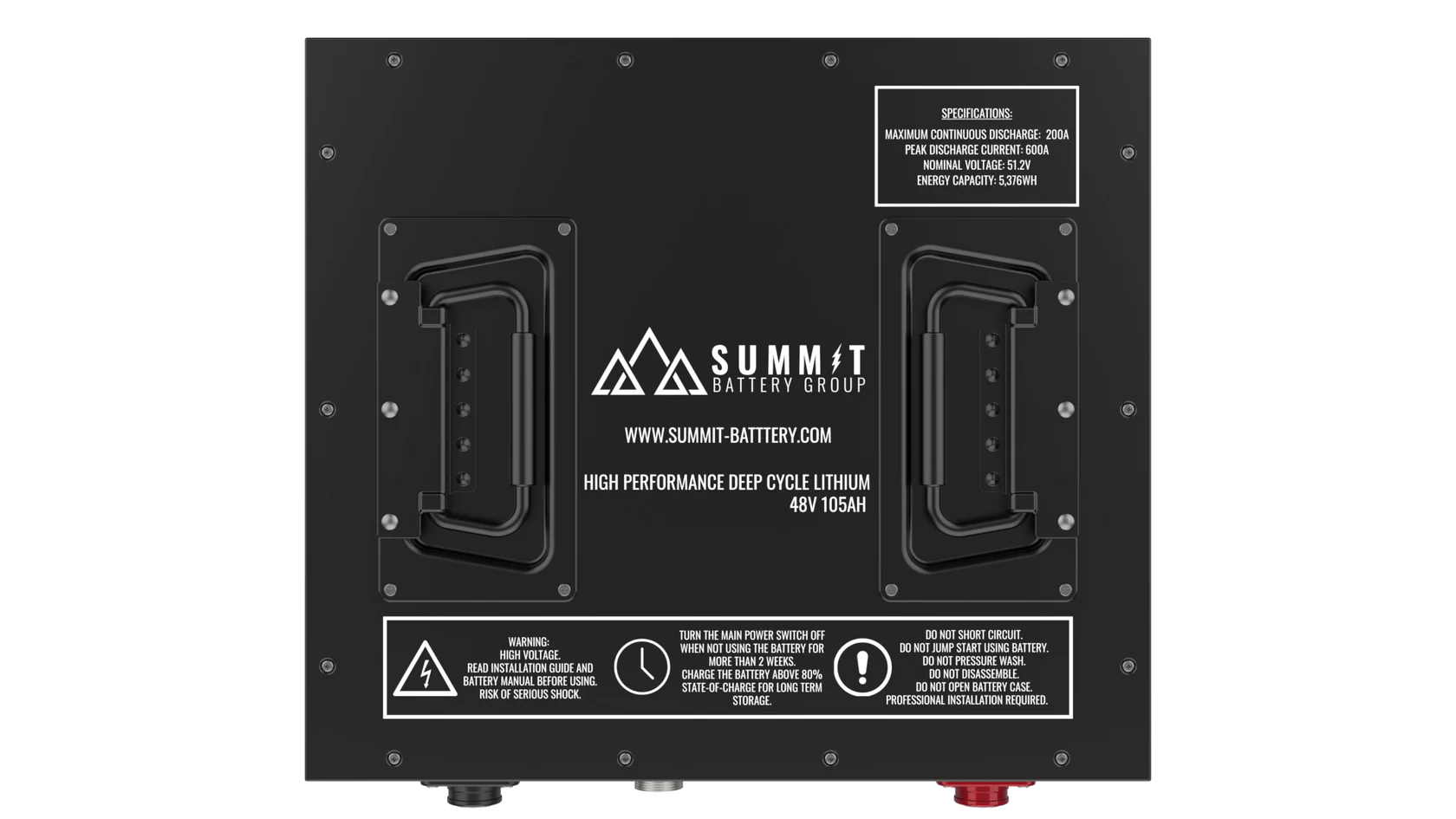

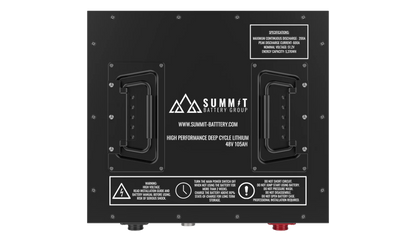

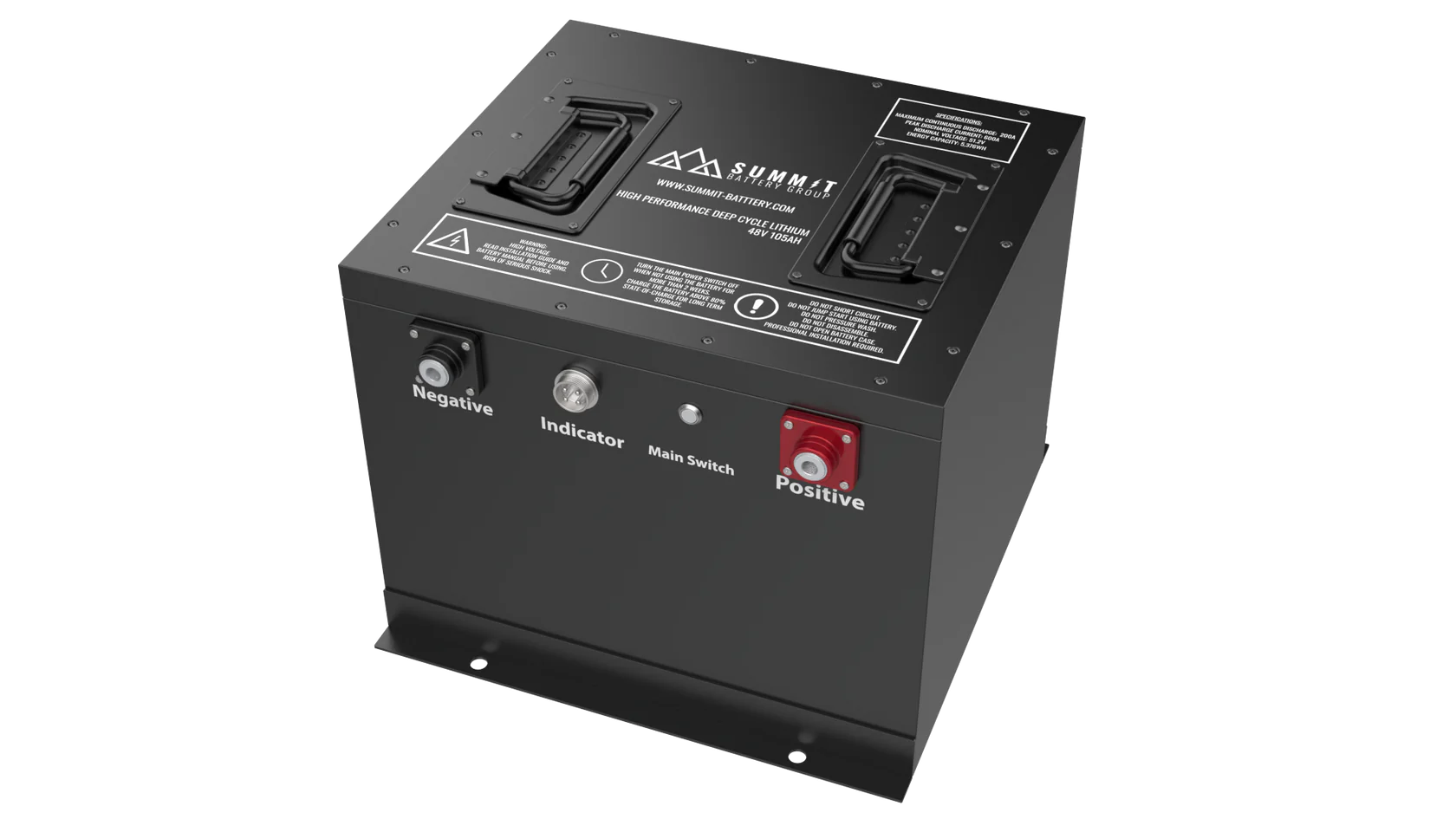

Summit Battery Group 51.2 - 105ah Battery& Installation Kit

This is the 51.2v - 105ah lithium golf cart battery and installation kit by the SUMMIT BATTERY GROUP.

COMPANY PROFILE

NAME: Summit Battery Group

DOING BUSINESS SINCE: 2023

OWNER: Andrew Granite

ADDRESS: NA

Phone Number: (813) 252-0940

Website: www.summit-battery.com

BATTERY FEATURES

BLUETOOTH: Yes

MOBILE APPLICATION: Yes

REMOTE DIAGNOSTICS: Yes

CAN COMMUNICATION: Yes

OWNER'S MANUAL: Yes

SELF HEATING: No

INTEGRATION WITH OEM DISPLAY CLUSTERS: No

REQUIRES UPGRADED DRIVE SYSTEM: No

BATTERY SPECIFICATIONS



DATA SHEET LINK: https://cdn.shopify.com/s/files/1/0549/7759/3406/files/48V_105AH_Data_Sheet.pdf?v=1685926587

VOLTAGE: 51.2v

WORKING VOLTAGE RANGE: 48v-57v

AMP HOUR RATING: 105ah

ENERGY: 5,376 Wh

CELL TYPE: LiFeP04

CELL CONFIGURATION: 1P-16s

PEAK DISCHARGE CURRENT: 600a

CONTINUOUS DISCHARGE CURRENT: 200a

BMS LOW VOLTAGE CUT-OFF: 40v

RECOMMENDED DISCHARGE TEMPERATURE RANGE: -4 to 149F

CHARGING TEMPERATURE RANGE: 32F - 113F

DIMENSIONS: 13" x 13" x 10.4"

WEIGHT: 93 lbs

CASE TYPE: Gun metal powder coated steel shell

ENCLOSURE RATING: IP65

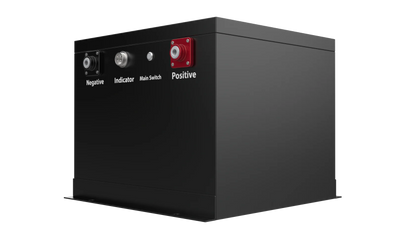

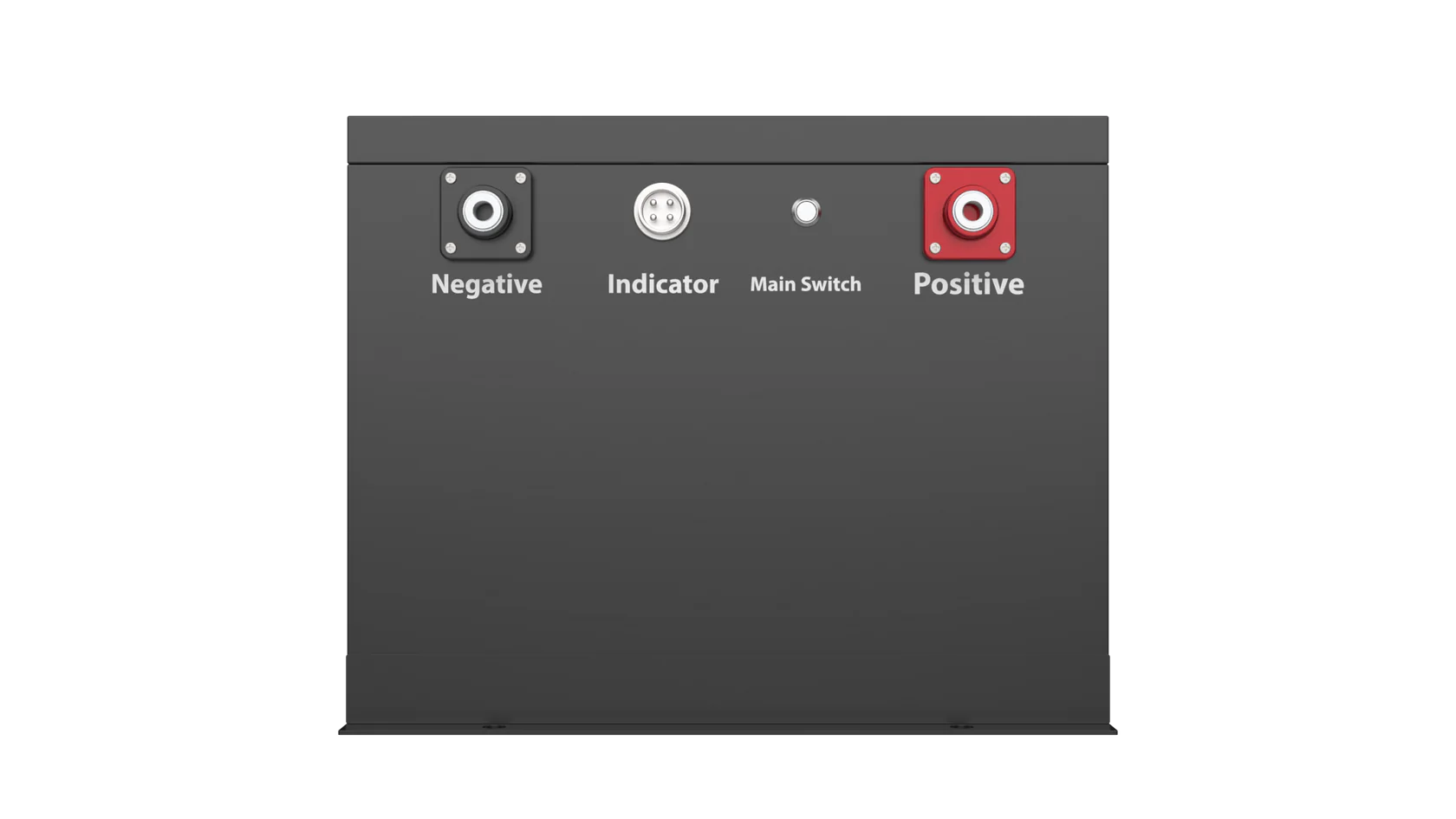

TERMINAL TYPE: M8

SELF DISCHARGE: 2% / Mo.

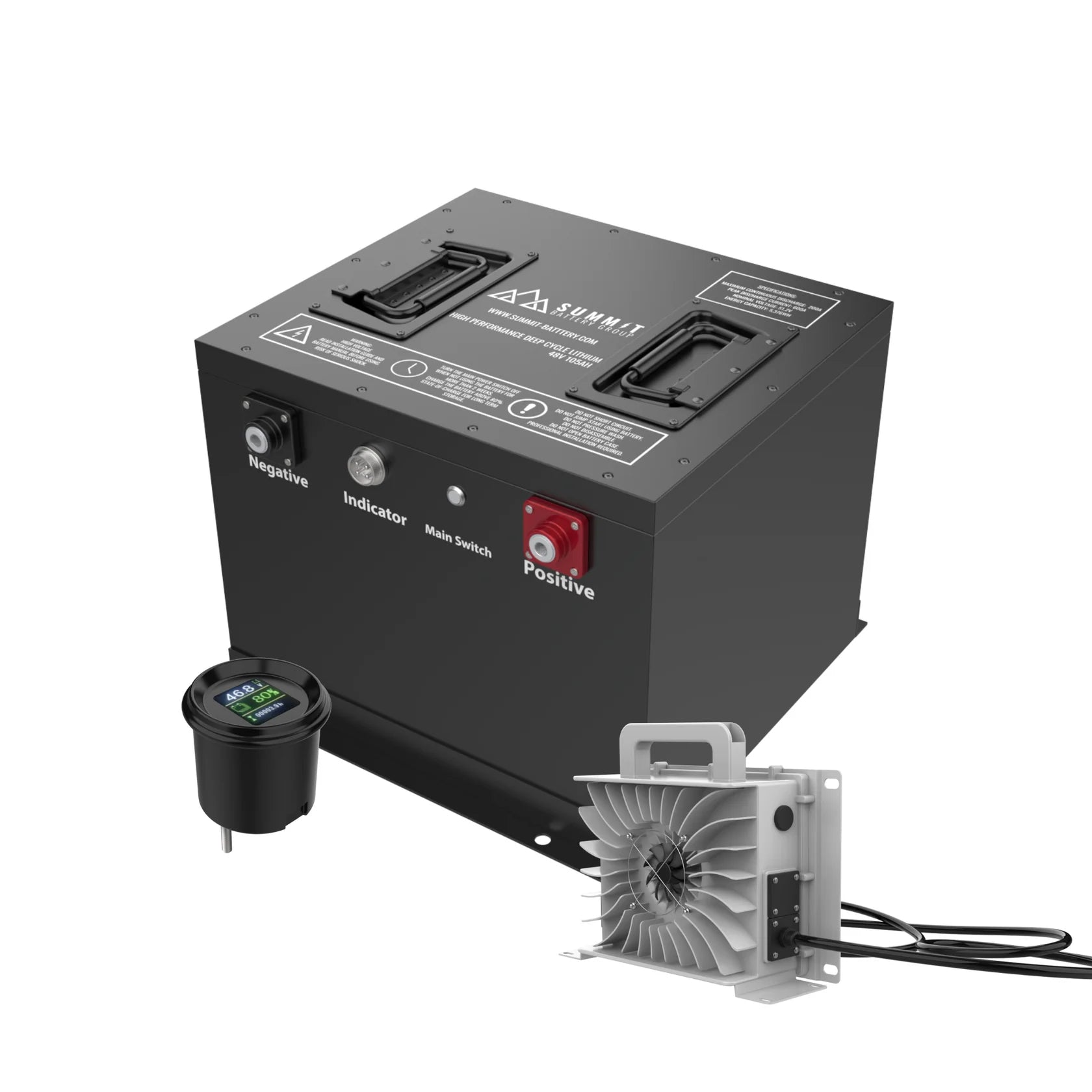

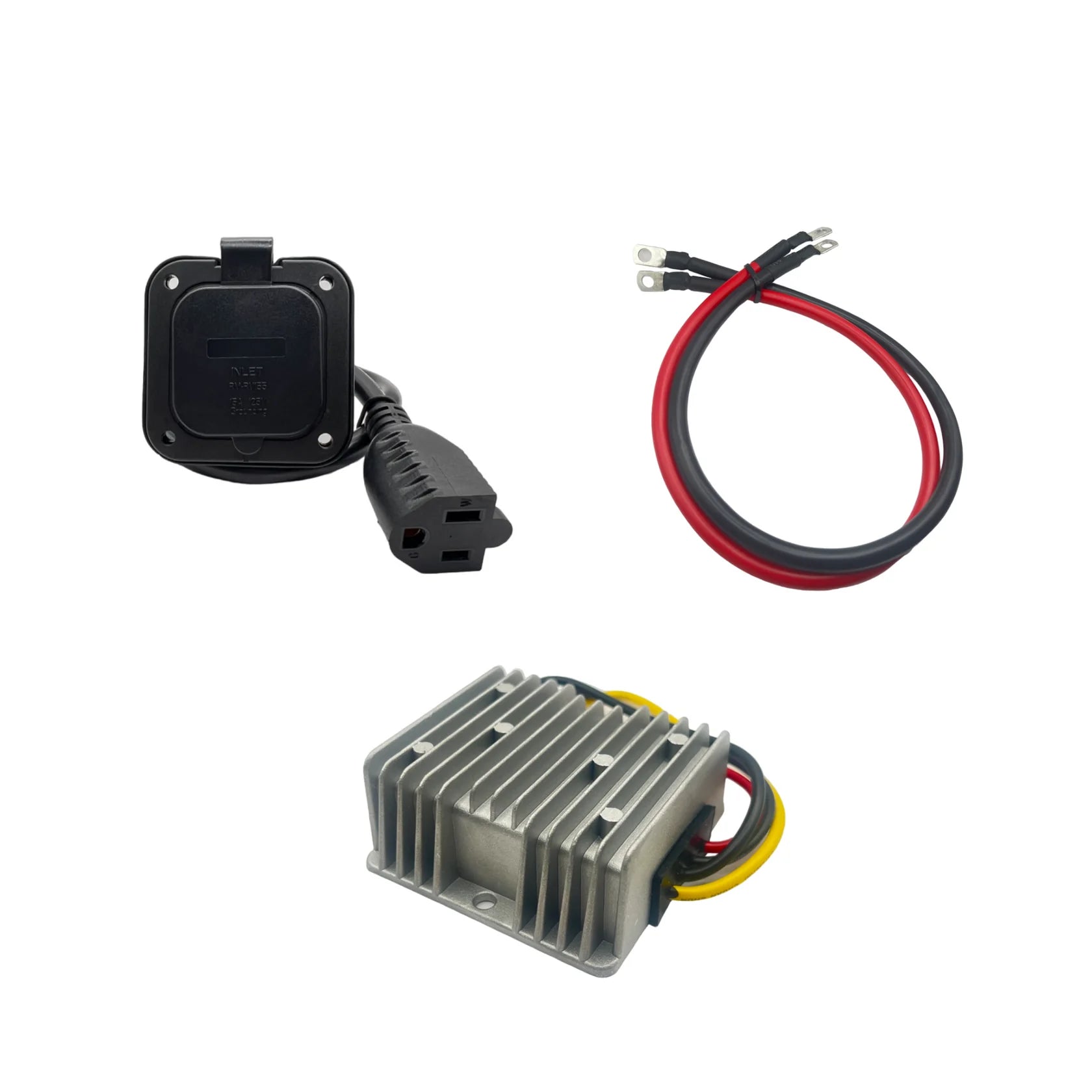

INCLUDED COMPONENTS

Battery

Onboard Charger

Battery Meter / Wiring Harness (dash mounted on/off button optional)

12v Voltage Reducer / Wiring Harness (optional add on item)

Mounting Hardware

Main Battery Replacement Cables (2 gauge)

AC Port Replacement / AC Port Cover Plate

Owner's Manual, Warranty & Component Information

PERFORMANCE EXPECTATIONS

RANGE: (under average load) 2/4 seater = 40-45 miles | 6 seater = 20-25 miles

WEIGHT SAVINGS: 240 lbs

SPEED INCREASE: 1-2 MPH due to weight loss

TORQUE INCREASE: Noticeable torque increase

SERVICE LIFE: 3500+ life cycles

TECHNICAL SUPPORT

By phone Mon-Fri - 9am-5pm EST. @ (813)252-0940

By email - info@summit-battery.com

WARRANTY

- 8 YEAR WARRANTY (5 years at 100% & 3 years prorated)

- LINK: https://www.summit-battery.com/pages/warranty-information

INSTALLATION VIDEOS

- Summit Battery Group 51v-105ah - Club Car Precedent Installation Video
