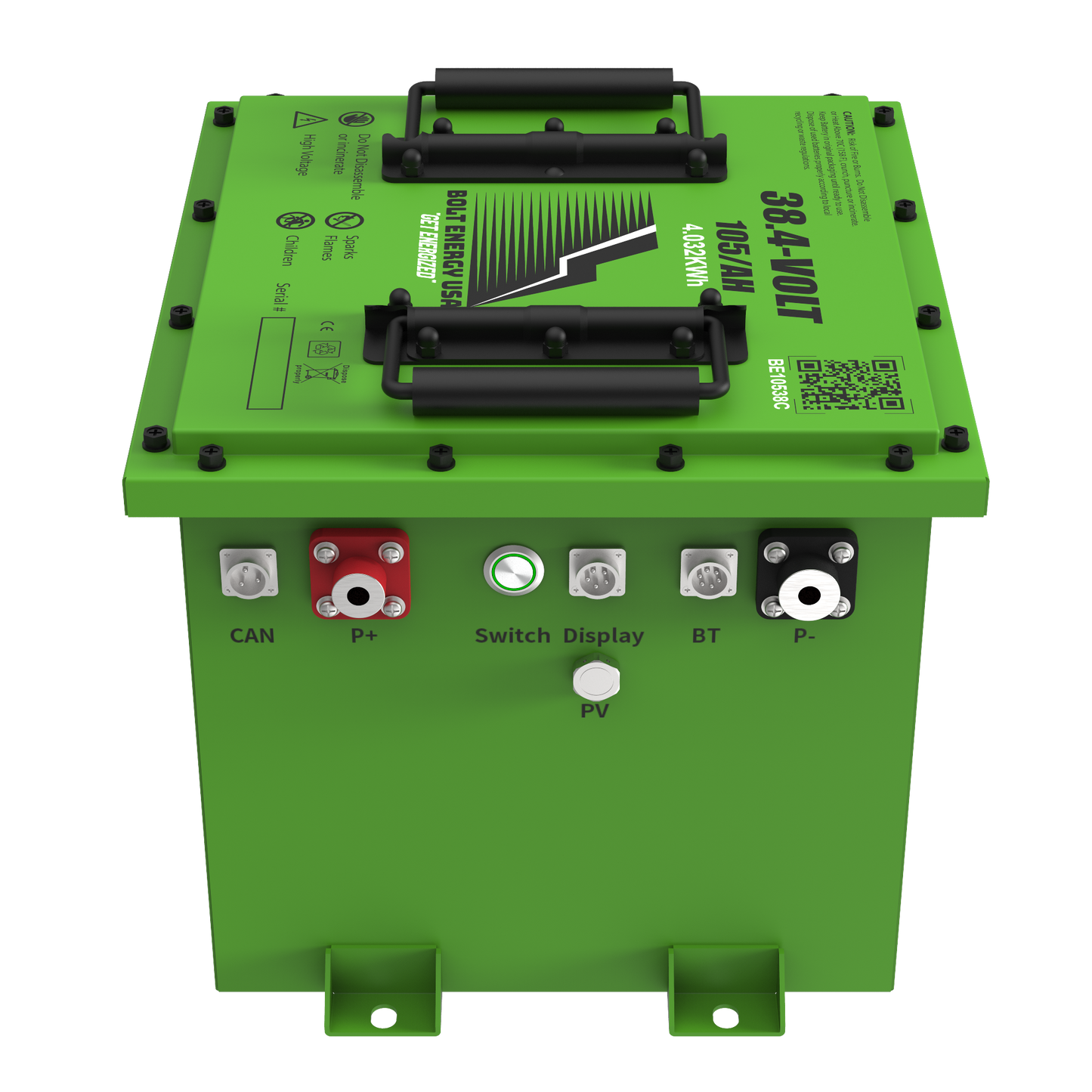

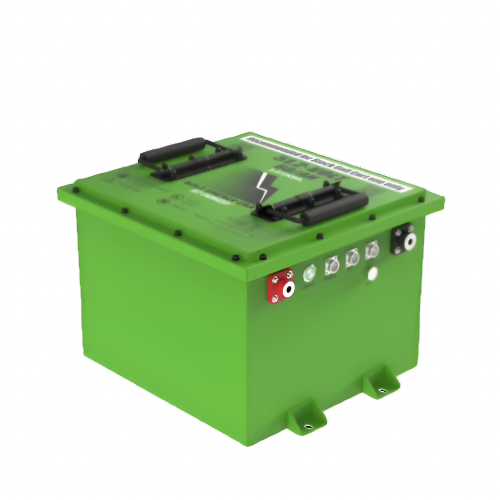

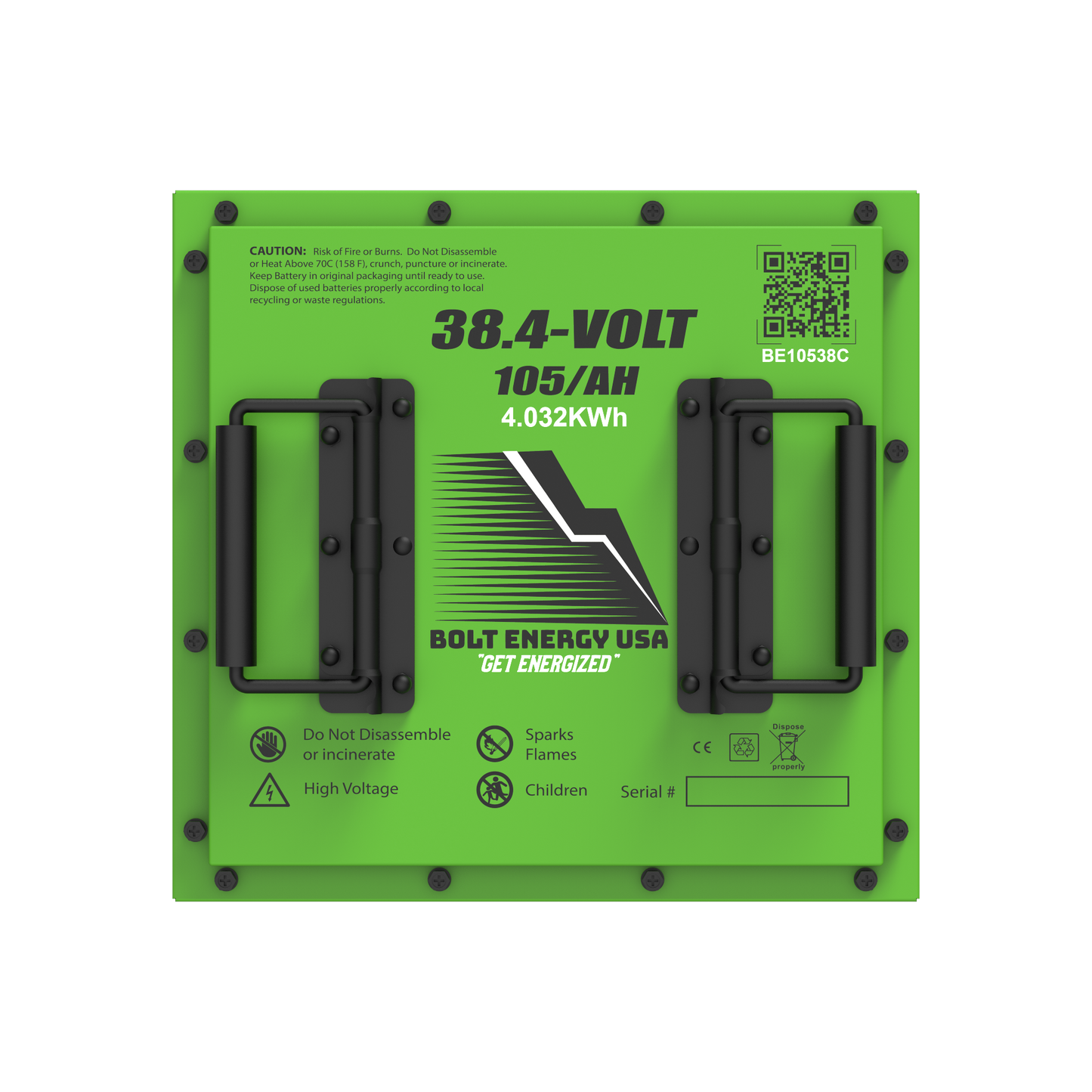

This is the 38.4v - 105ah lithium golf cart battery and Standard Installation Kit by Bolt Energy USA. This battery comes with everything you need to convert your vehicle to lithium power. The Bolt Energy USA 36v battery is designed to fit inside every 36v golf cart with little to no battery tray modifications.
COMPANY PROFILE
- NAME: BOLT ENERGY USA
- LOCATION: Largo, FL
- YEARS IN BUSINESS: 4
- OWNER: Bobby Diaz
- ADDRESS: 6650 Treeland Ave. A - Largo, FL
- Phone Number: (727) 955-4955
- Website: www.boltenergyusa.com
BATTERY FEATURES
- BLUETOOTH: Yes
- MOBILE APPLICATION: Yes
- CAN COMMUNICATION: Yes
- OWNER'S MANUAL: Yes
- SELF HEATING: No
- INTEGRATION WITH OEM DISPLAY CLUSTERS: No
- REQUIRES UPGRADED DRIVE SYSTEM: No
BATTERY SPECIFICATIONS
- VOLTAGE: 38.4v
- WORKING VOLTAGE RANGE: 36v-42ssv
- AMP HOUR RATING: 105ah
- ENERGY: 4.032 KWh
- CELL TYPE: LiFeP04
- CELL CONFIGURATION: 1P-16s
- PEAK DISCHARGE CURRENT: 520a (30s)
- CONTINUOUS DISCHARGE CURRENT: 250a
- BMS DISCHARGE CUT-OFF: 30v
- BMS LOW VOLTAGE CUT-OFF: +520a (30s) & +250a (50s)
- RECOMMENDED DISCHARGE TEMPERATURE RANGE: -4 to 149F
- CHARGING TEMPERATURE RANGE: 34F - 140F

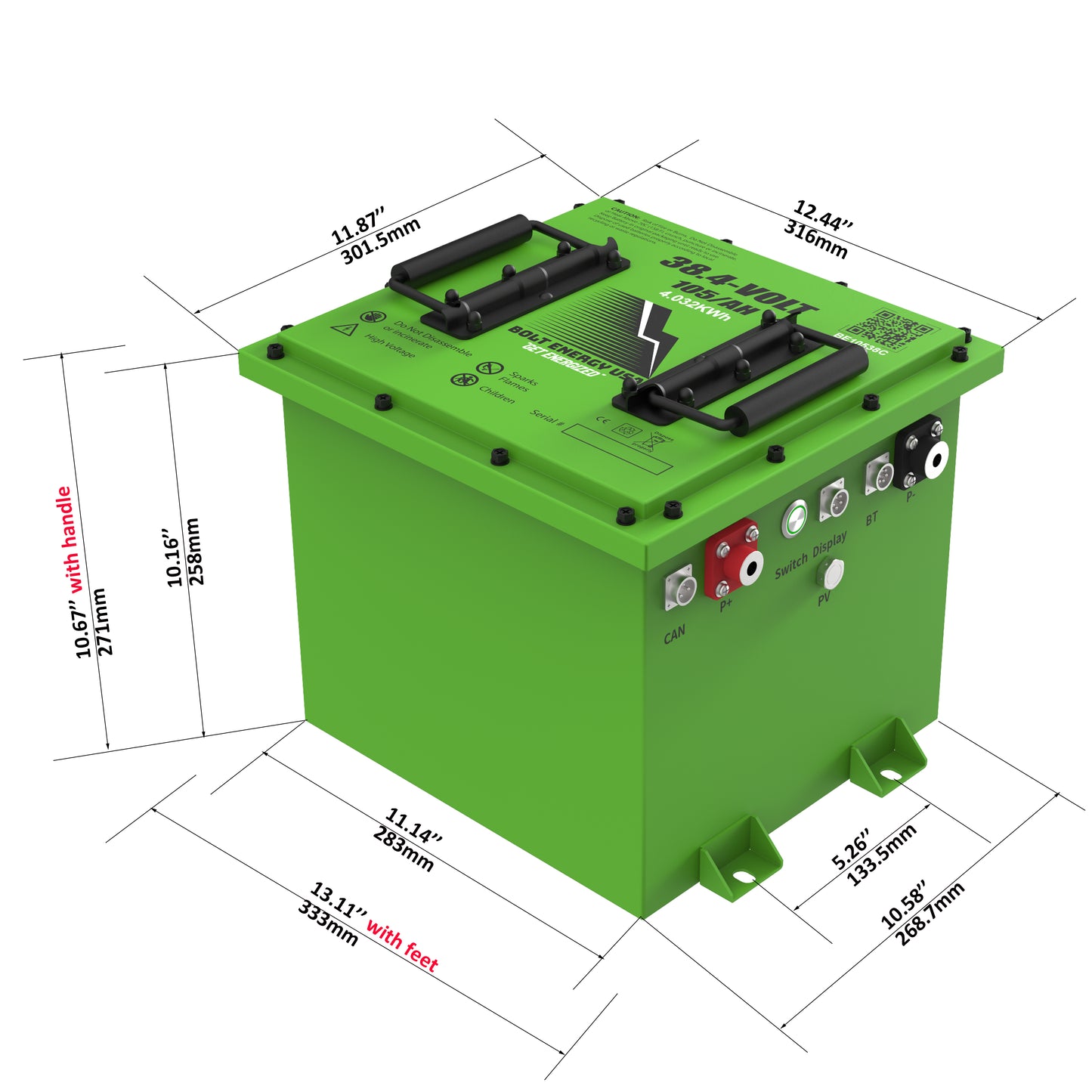

- DIMENSIONS: (LxWxH) 11.14 x 10.58 x 10.67
- WEIGHT: 77.27 lbs
- CASE TYPE: Powder coated steel
- ENCLOSURE RATING: IP67
- TERMINAL TYPE: M8
- SELF DISCHARGE: 3% / Mo.
- DATA SHEET LINK: www.boltenergyusa.com
INCLUDED COMPONENTS
- Battery
- Onboard Charger
- Battery Meter / Wiring Harness
- Mounting Brackets & Hardware
- AC Port Replacement
- AC Port Cover Plate
- Owner's Manual
- Charging Extension Cord
PERFORMANCE EXPECTATIONS
- RANGE: (under average load) 2/4 seater = 30-35 miles
- WEIGHT SAVINGS: 225 lbs
- SPEED INCREASE: Most owner's see 1-2 mph increase, due to weight loss
- TORQUE INCREASE: Most owner's notice immediately the increase in torque due to 200+ lbs of battery weight loss.
- SERVICE LIFE: 3500+ life cycles
TECHNICAL SUPPORT
- By phone Mon-Fri - 9am-5pm EST. @ (727) 955-4955
- By email - info@boltenergyusa.com
WARRANTY
- 10 YEAR WARRANTY (5 years at 100% & 5 years prorated)
- LINK: www.boltenergyusa.com/warranty/
INSTALLATION VIDEOS
- Coming Soon
